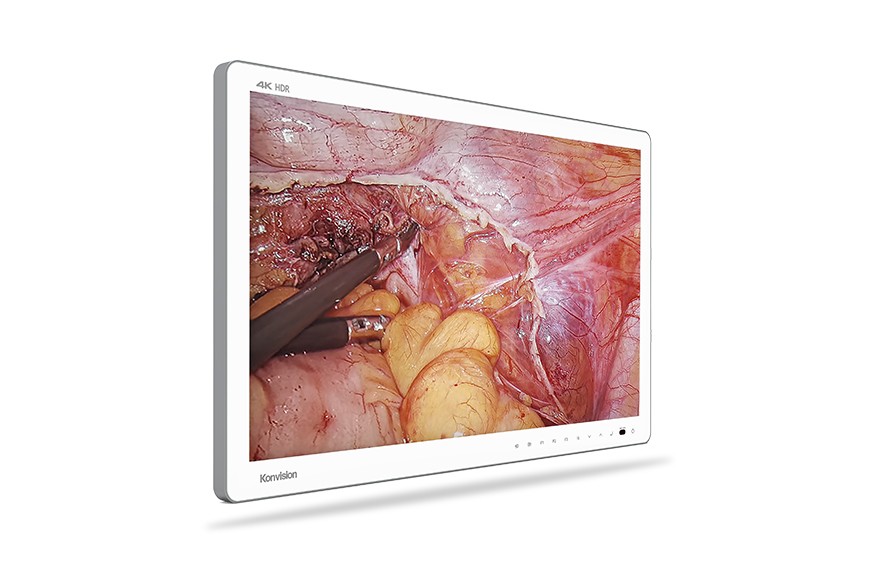

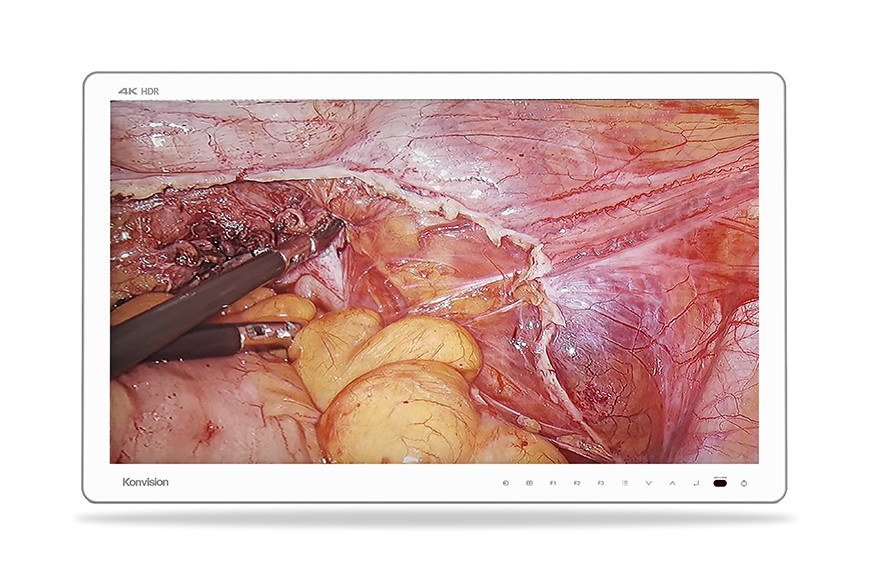

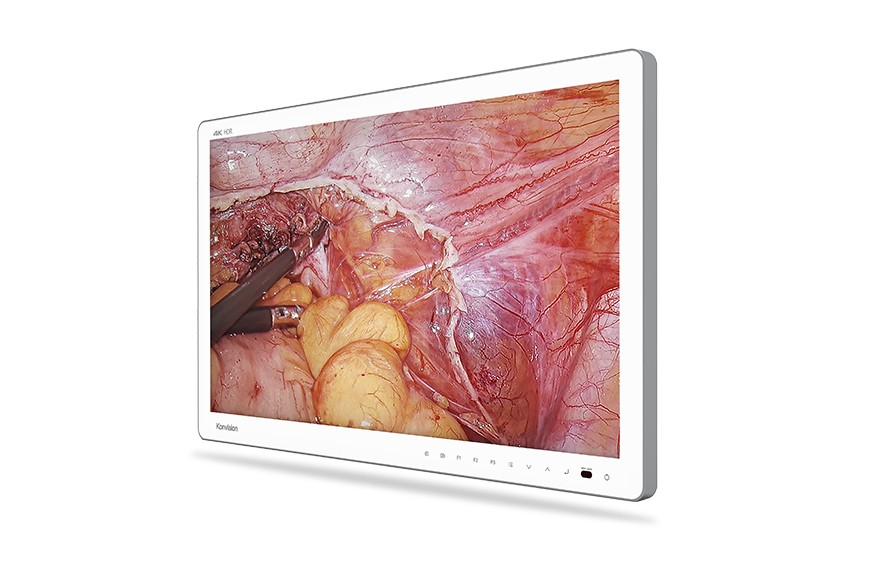

4K UHD Display

It is equipped with a 27-inch 4K resolution 10bit LCD panel, offering four times the pixel density of FHD. Delivers finer details and clearer visuals, ideal for endoscopy, microsurgery, and other medical scenarios.

High Dynamic Range (HDR)

Compatible with HDR standard based on PQ and HLG, it is offering true-to-life shadow details and well-defined highlights for a more perceptual visual experience, closely resembling human vision.

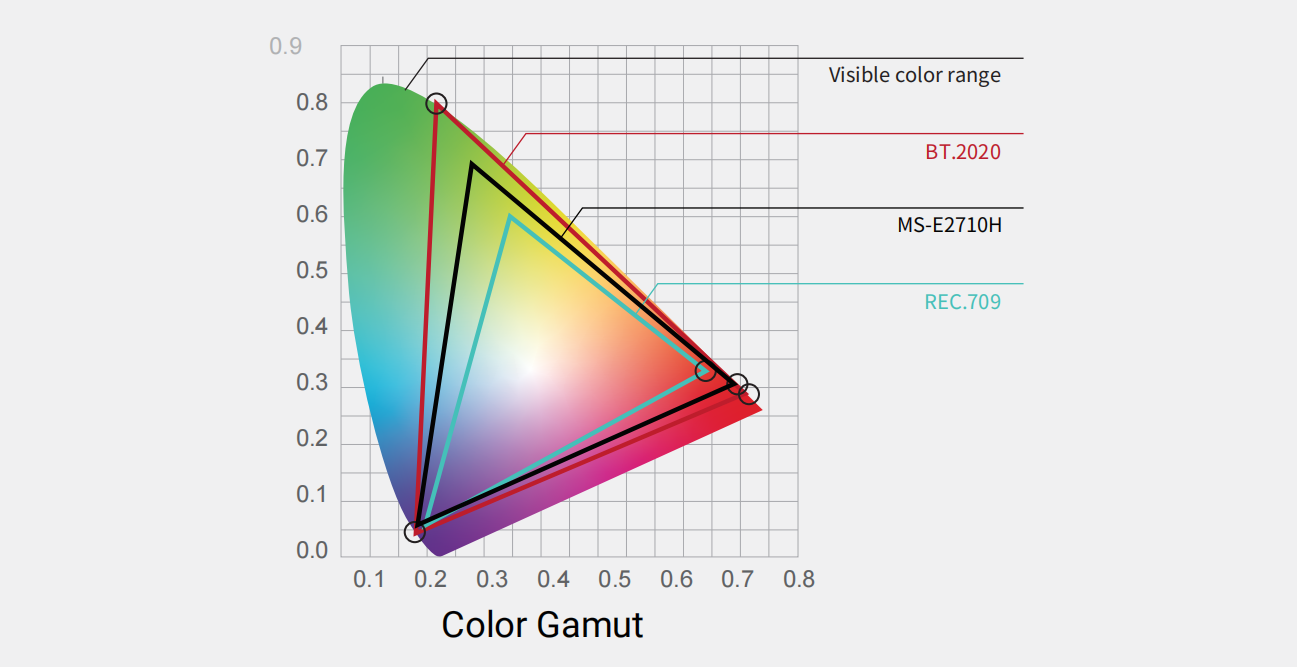

BT.2020 Wide Color Gamut

Complies with the ITU-R recommended BT.2020 color gamut standard, with a color depth of 1.07 billion, providing a broader range of red and green, and more truly presenting the subtle color differences of various structures under endoscopy.

Effortless Cable Management

Downward-facing and recessed interface design with a cable box for organized wiring which can ensure a clean, safe, and hygienic surgical environment.

Intelligent Image Plus Mode

Konvision's Image Plus technology offers three enhancement modes—contour, color, and lift—to improve clarity and visibility, ensuring a more comfortable viewing experience.

                Intelligent Image Plus Mode ON                                                 Intelligent Image Plus Mode OFF

Simultaneous Quad-View Display

It supports input from multiple signal sources, allowing four images to be displayed simultaneously. It also enables real-time monitoring of patient vital signs or referencing additional imagery during endoscopic procedures.

Image Rotation & Mirroring

Supports 180° image rotation and left-right mirroring, enabling medical staff to adjust views for optimal visibility and comfort.

Multiple Connectivity Options, Long-Distance Transmission

It offers 12G-SDI, 3G-SDI, HDMI2.0, DVI, SFP+ interfaces, compatible with 4K and 1080P signal input and output, supporting composite signals, meeting various connection needs.

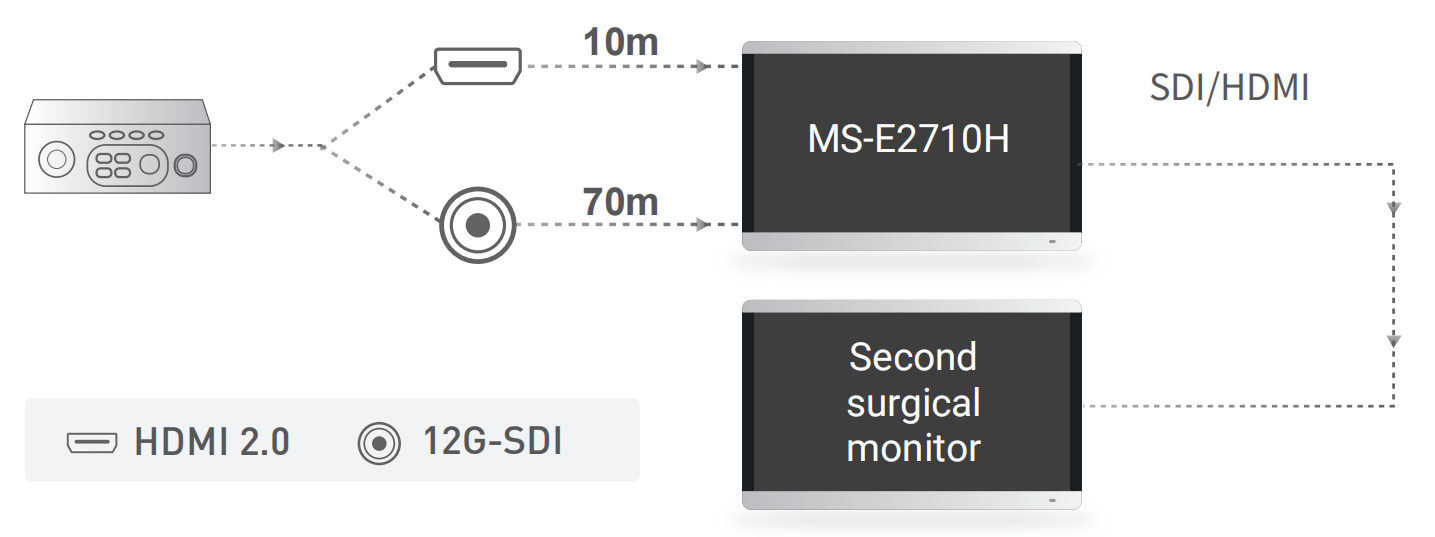

Real-time image sharing

It is configured with HDMI 2.0, 12G-SDI output interfaces for seamless duplication and sharing of imagery across monitors, achieving real-time transmission and sharing of information across spaces.

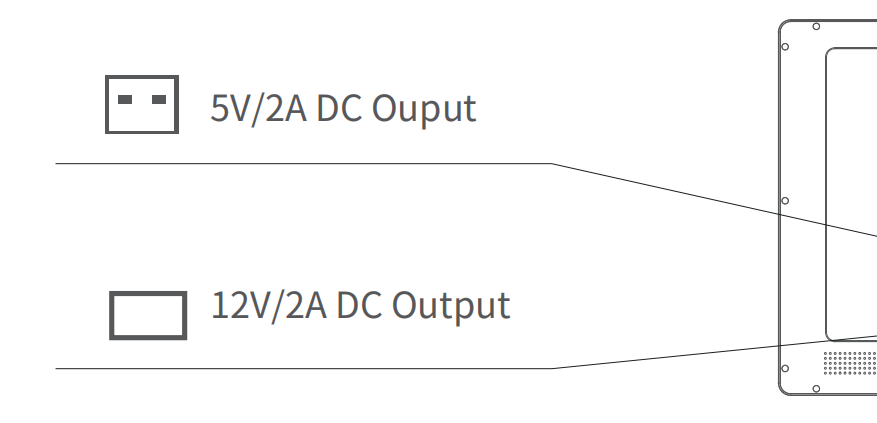

Stable Input & Output

It is equipped with dual medical-grade power options (AC and DC)，and offers a DC output port to power peripheral devices, reducing external power connections and simplifying equipment layout.

Anti-Reflective for Clear Viewing

Features anti-reflective glass with excellent scratch resistance, minimizing glare and reflections in bright operating room lights, preventing interference with screen images and effectively alleviating eye fatigue.

Anti-Contamination and Easy-to-Clean Design

The monitor's front features a full flat design with touchable buttons, effectively avoid contamination, and is easy to clean and disinfect.
