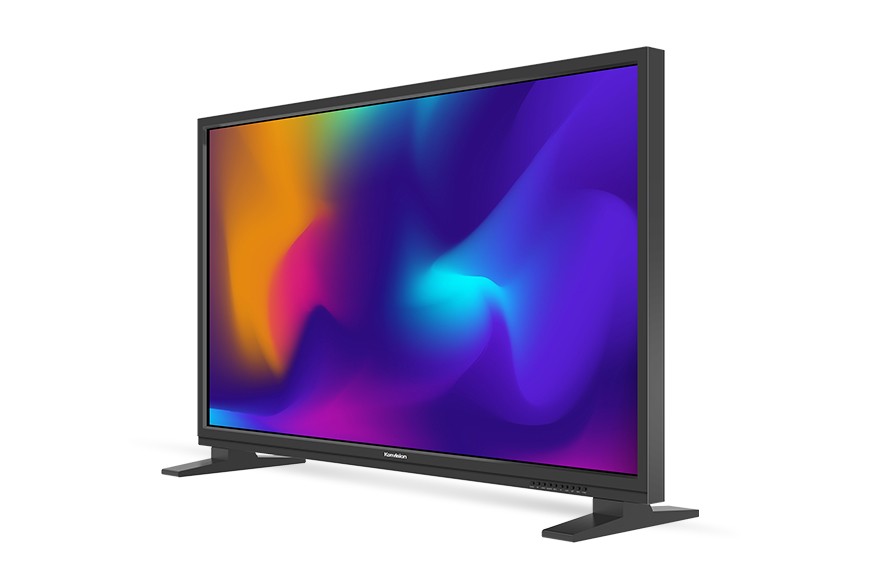

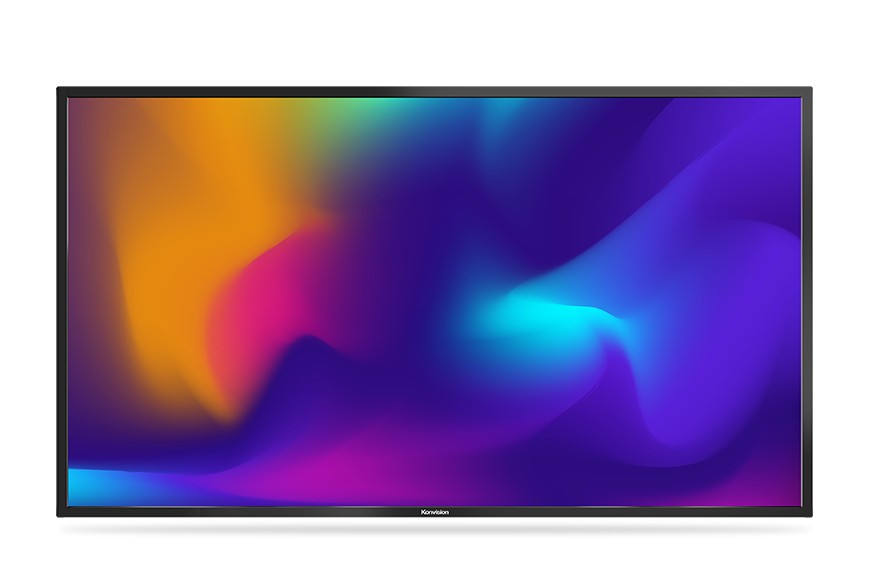

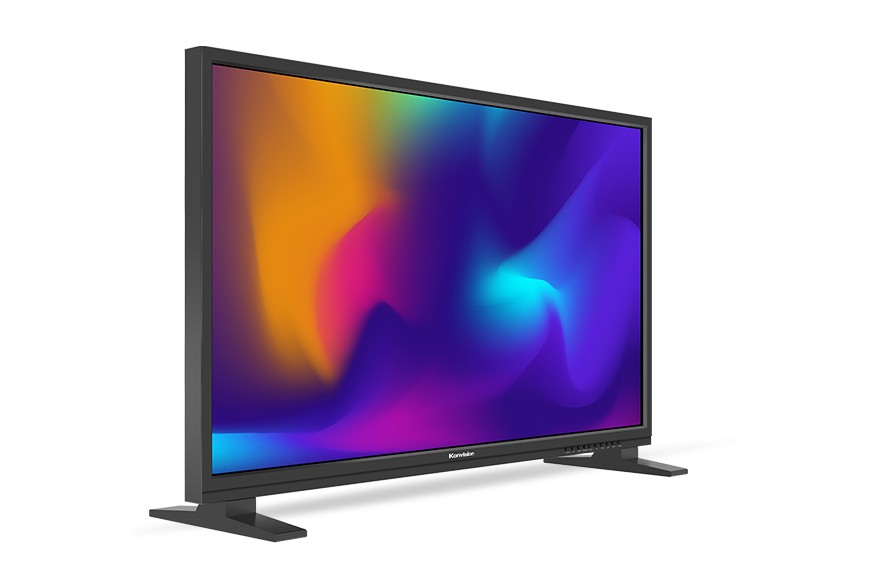

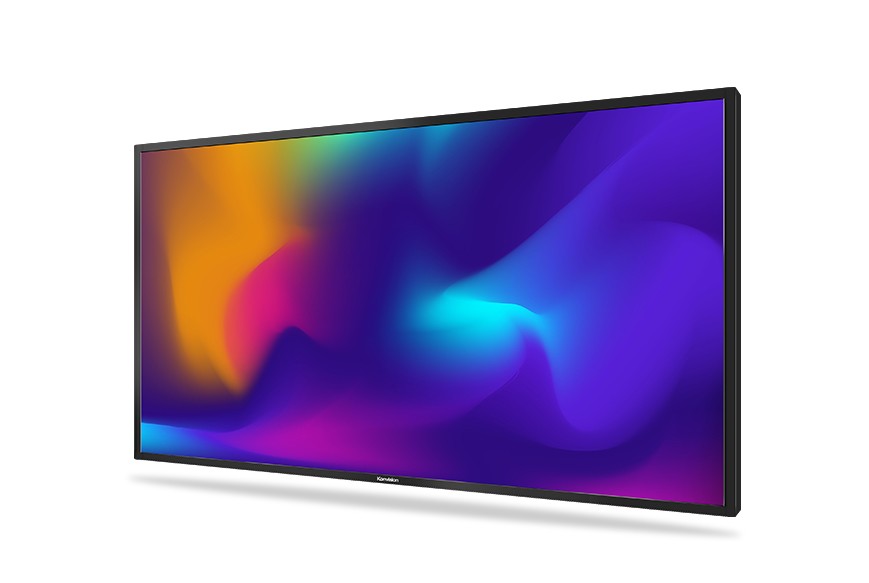

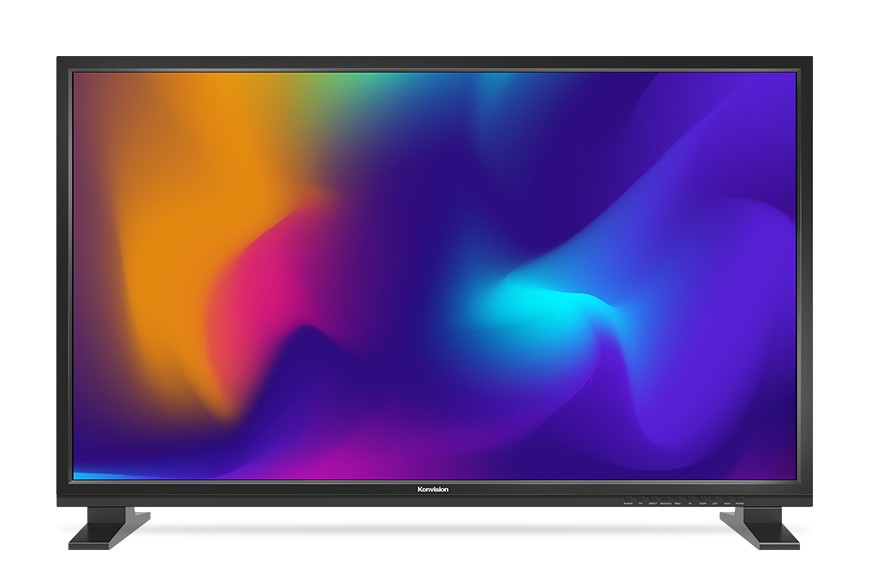

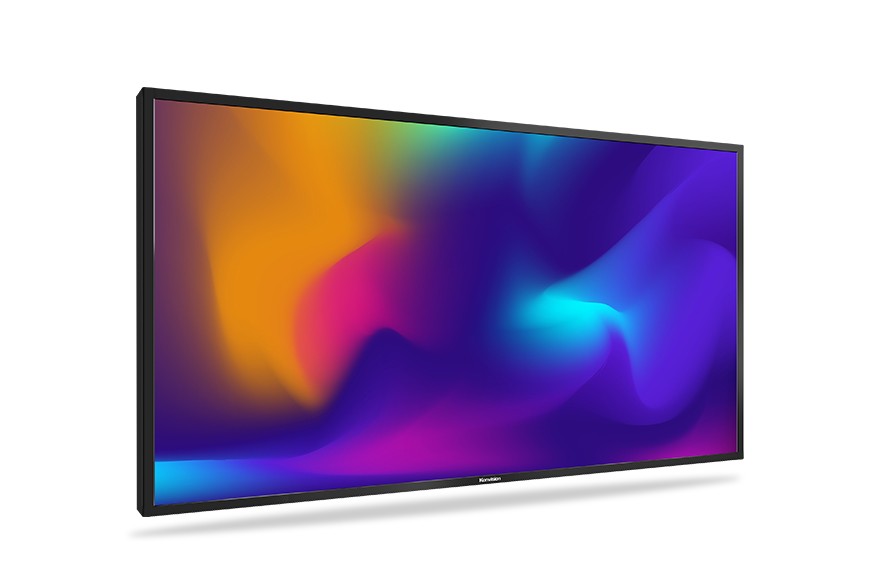

KVM-4250W

42.5" FHD Broadcast Monitor

KVM-4250W has equipped with FHD resolution IPS LCD panel, high brightness and contrast ratio, 2x3G-SDI inputs and outputs with waveform, vectors, pixel measurement and other full broadcast features, PIP and PBP enables two signals be displayed on screen in the same time. Super slim design offers excllent solution for studio, broadcast, video wall as well as high-end video conference applications.


Highlights Product Descriptions Specifications

Highlights

- 42.5" 1920×1080 native resolution

- 12Bit video processing

- 3D LUT color calibration

- 3G-SDI 4:4:4 12Bit signals(SMPTE 425M A/B)

- 2x2K/3G/HD-SDI in/out

- Composite/Component in/out

- PIP/PBP

- Waveform, Vectorscope, Histogram, Audio Meter for SDI1, SDI2

- Dynamic UMD(TSL3.1/4.0/5.0)

- Pixel Measurement

- Picture Flip, H/V Delay

- Focus Assist, Zoom

- False Color, Zebra

- Scan, Marker, Blue Only/Mono

- Time Code, Audio Meter

- Power-off Memory

- Ethernet/GPI


Product Descriptions

3D LUT Color Calibration


Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A probe(professional level) to achieve a precise color. Monitor's also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

32" 8K HDR monitor




Darkness Check


Increasing the brightness and contrast ratio in the dark areas, Darkness Check can show more shadow details of the input signal. Darkness Check can be used for double checking the shadow detail of the dark areas to avoid any missing infomation.

32" 8K HDR monitor




Part Zoom In


Part Zoom in function allows user Zoom In any part of the picture, to watch picture details more clearly, and assist for focus.

24" FHD HDR Premium Monitor




PIP & PBP


Images of two SDI signals manage to display on screen at the same time. It also supports PIP and PBP for one SDI signal with the other signal (Video/Component/DVI/VGA). The two images can swap freely between each other.

24" FHD HDR Premium Monitor




Pixel Measurement


Select any single pixel or block of pixels by using a movable cross-hair to obtain real time readouts of the Y&RGB values of the selected position. This function is to get real time Y&RGB measurement values of any point of the input signals and compare the values of of any two points.

24" Full HD P3 Grading Monitor




Waveform(Alarm),Vectors


SDI supports Waveform, Vectorscope, Histogram and manage to be displayed on screen at the same time.When luminance reaches or exceeds the preset value, the over exposure areas will be red marked(Waveform Alarm).

17"8K HDR Monitor




False Color


Check exposure of the image.Blue,cyan,green,yellow,orange and red color be displayed in turn to show the luminance or brightness values of the image from darkest to brightest,enables an achievement of proper exposure without applying external test equipment.

17"8K HDR Monitor




Focus Assist


Focus assist aids the camera operator in obtaining the sharpest possible picture,it will mark with red color where the sharp edges appear on the screen.

17"8K HDR Monitor




Zebra


Display the overexposed areas(too bright) of the image with zebra stripes,aids the camera operator to control the luminance,in order to avoid overexposure.This feature is very effective for proper exposure.

17"8K HDR Monitor




Picture Flip


Horizontal picture flip function allows negative image,is very useful in the studios/virtual studios,such as weather forecast,news and other programs,etc.

24" Full HD P3 Grading Monitor

Specifications

Panel
Display Size42.5"
High Resolution1920×1080
Aspect Ratio16:9
Wide Viewing Angle178°(H) / 178°(V)
Pixel Pitch0.4833×0.4833(mm)
Color Depth16.7M
Back LightLED
Brightness450cd/m2
Contrast Ratio1300:1
INPUT
OUTPUT
CONPATIBLE SDI FORMATS
Audio In / Out
GENERAL
