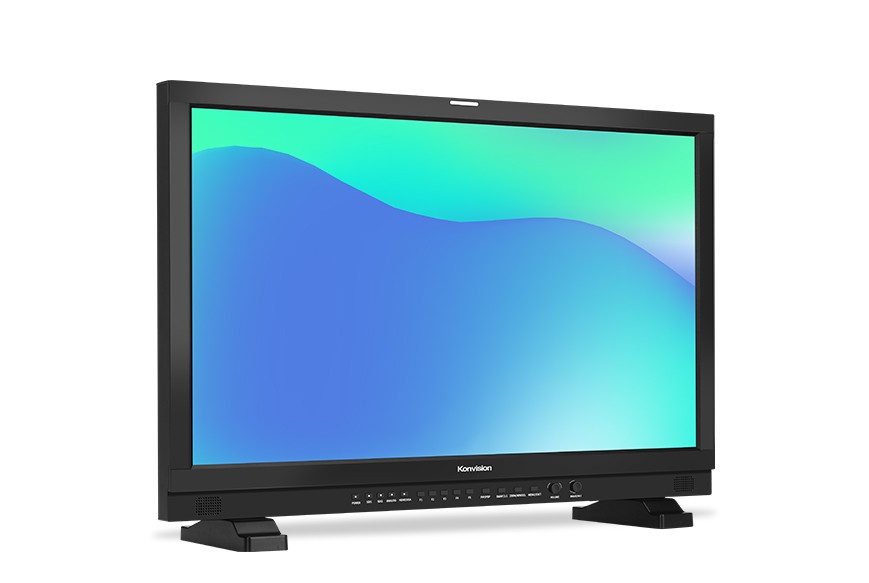

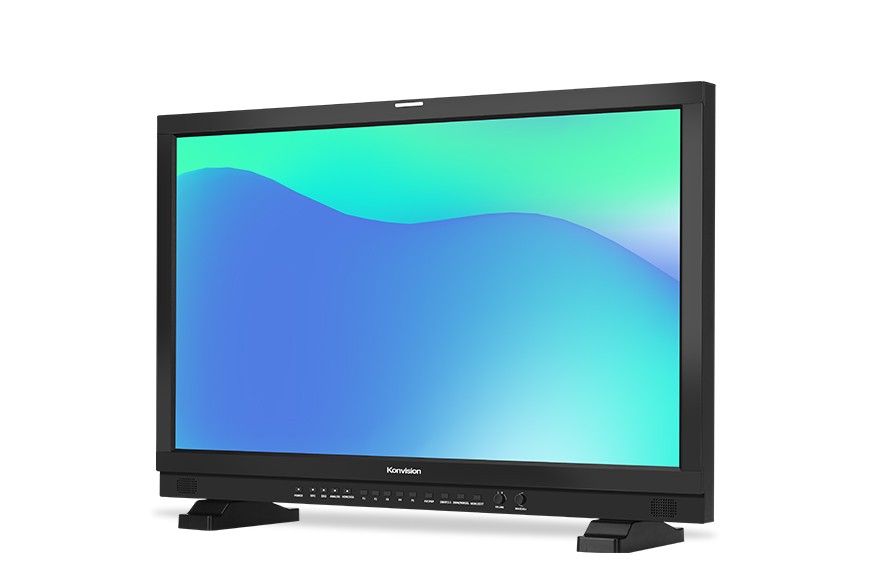

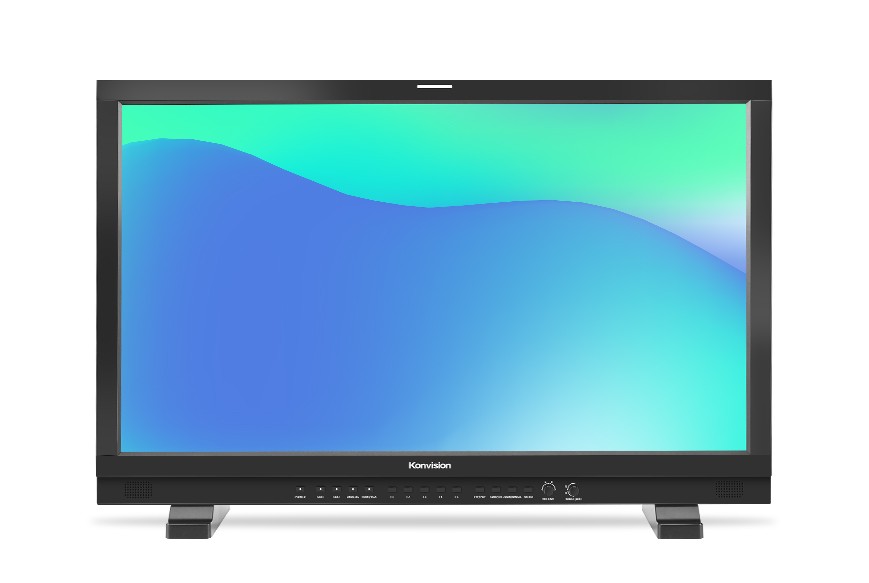

KVM-2250W

21.5" FHD Broadcast Monitor

KVM-2250W is a multi-functional monitor that supports full video formats including 2K and 3Gbs SDI 4:4:412 Bit signals. Efficient features makes it a nice choice for production, post-production and editing, as well as studio and OB truck.


Highlights Product Descriptions Specifications

Highlights

- 1920x1080 resolution

- 12 Bit Video Processing, image no delay

- 3G-SDI 4:4:4 12bit signals (SMPTE 425M A/B)

- 2x2K/3G-SDI inputs and outputs(2K/3G/HD/SD-SDI auto detect)

- 1x DVI-I input, 1x composite video input

- Part Zoom In

- Darkness Check

- H/V Delay, Over Scan, Markers

- Audio Level Meter, Blue/Mono Only

- Remote control: Ethernet/GPI, RS422 In/Out

- Dynamic UMD(TSL3.1/4.0/5.0), Time Code Display

- LED Tally Light and On-screen Tally display

- F-key configuration and Key Lock function

- Built-in AC in and DC in power supply

- 3D LUT Color calibration with ColourSpace & CalMAN

- Waveform,Vectorscope for SDI1 and SDI2

- Waveform, Vectorscope for DVI

- Pixel Measurement and Audio Phase

- PBP/PIP(size/position adjustable)

- Picture Flip,Focus Assist

- False Color

- Zebra

Product Descriptions

3D LUT Color Calibration


Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A probe(professional level) to achieve a precise color. Monitor's also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

32" 8K HDR monitor




Darkness Check


Increasing the brightness and contrast ratio in the dark areas, Darkness Check can show more shadow details of the input signal. Darkness Check can be used for double checking the shadow detail of the dark areas to avoid any missing infomation.

32" 8K HDR monitor




Part Zoom In


Part Zoom in function allows user Zoom In any part of the picture, to watch picture details more clearly, and assist for focus.

24" FHD HDR Premium Monitor




PIP & PBP


Images of two SDI signals manage to display on screen at the same time. It also supports PIP and PBP for one SDI signal with the other signal (Video/Component/DVI/VGA). The two images can swap freely between each other.

24" FHD HDR Premium Monitor




Pixel Measurement


Select any single pixel or block of pixels by using a movable cross-hair to obtain real time readouts of the Y&RGB values of the selected position. This function is to get real time Y&RGB measurement values of any point of the input signals and compare the values of of any two points.

24" Full HD P3 Grading Monitor




Waveform(Alarm),Vectors


SDI supports Waveform, Vectorscope, Histogram and manage to be displayed on screen at the same time.When luminance reaches or exceeds the preset value, the over exposure areas will be red marked(Waveform Alarm).

17"8K HDR Monitor




False Color


Check exposure of the image.Blue,cyan,green,yellow,orange and red color be displayed in turn to show the luminance or brightness values of the image from darkest to brightest,enables an achievement of proper exposure without applying external test equipment.

17"8K HDR Monitor




Focus Assist


Focus assist aids the camera operator in obtaining the sharpest possible picture,it will mark with red color where the sharp edges appear on the screen.

17"8K HDR Monitor




Zebra


Display the overexposed areas(too bright) of the image with zebra stripes,aids the camera operator to control the luminance,in order to avoid overexposure.This feature is very effective for proper exposure.

17"8K HDR Monitor




Picture Flip


Horizontal picture flip function allows negative image,is very useful in the studios/virtual studios,such as weather forecast,news and other programs,etc.

24" Full HD P3 Grading Monitor

Specifications

Panel
Display Size21.5"
High ResolutionFull HD 1920×1080
Aspect Ratio16:9
Wide Viewing Angle178°(H) / 178°(V)
Pixel Pitch0.248×0.248(mm)
Color Depth16.7M
Back LightLED
Brightness250cd/m2
Contrast Ratio1000:1
INPUT
OUTPUT
CONPATIBLE SDI FORMATS
Audio In / Out
GENERAL
