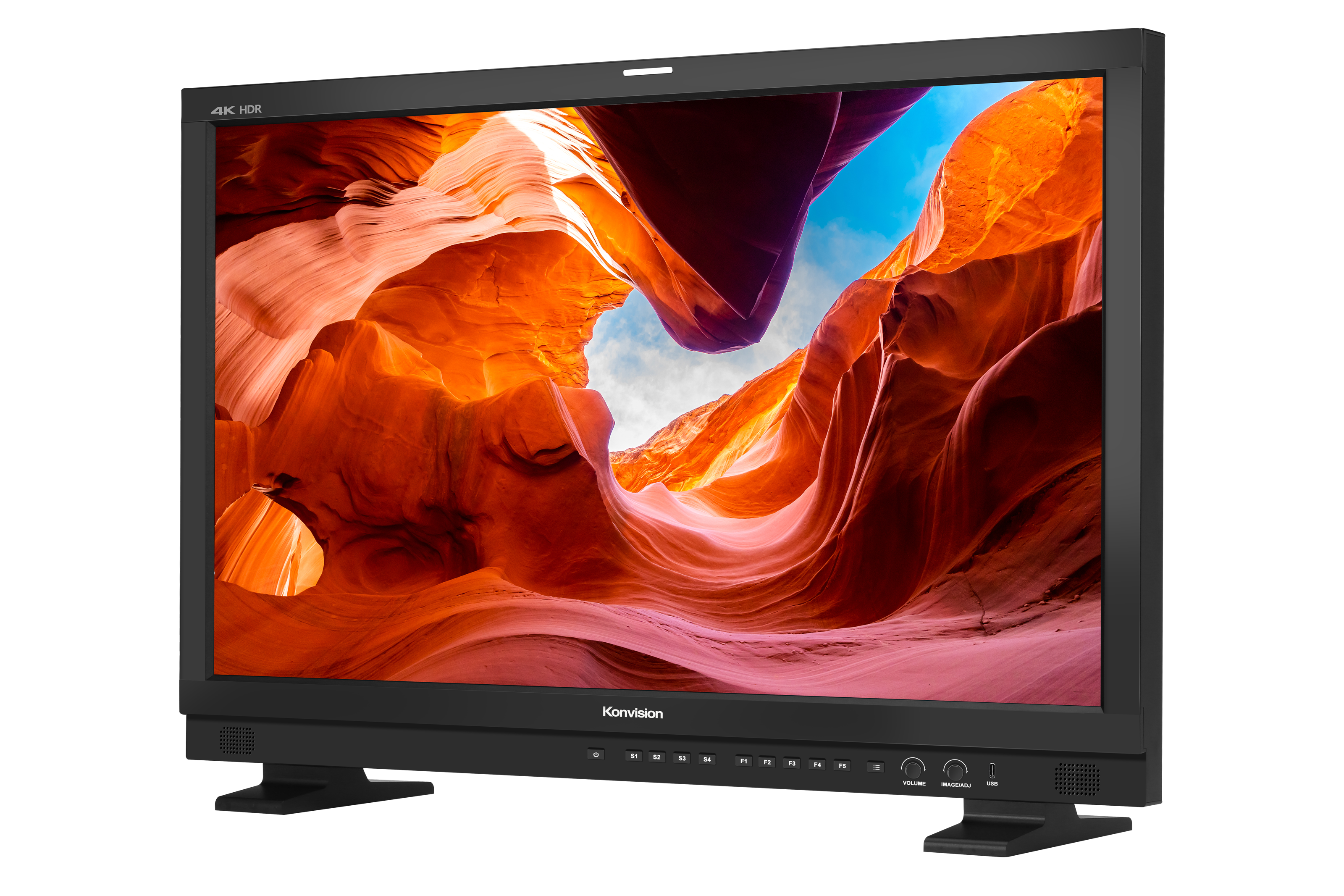

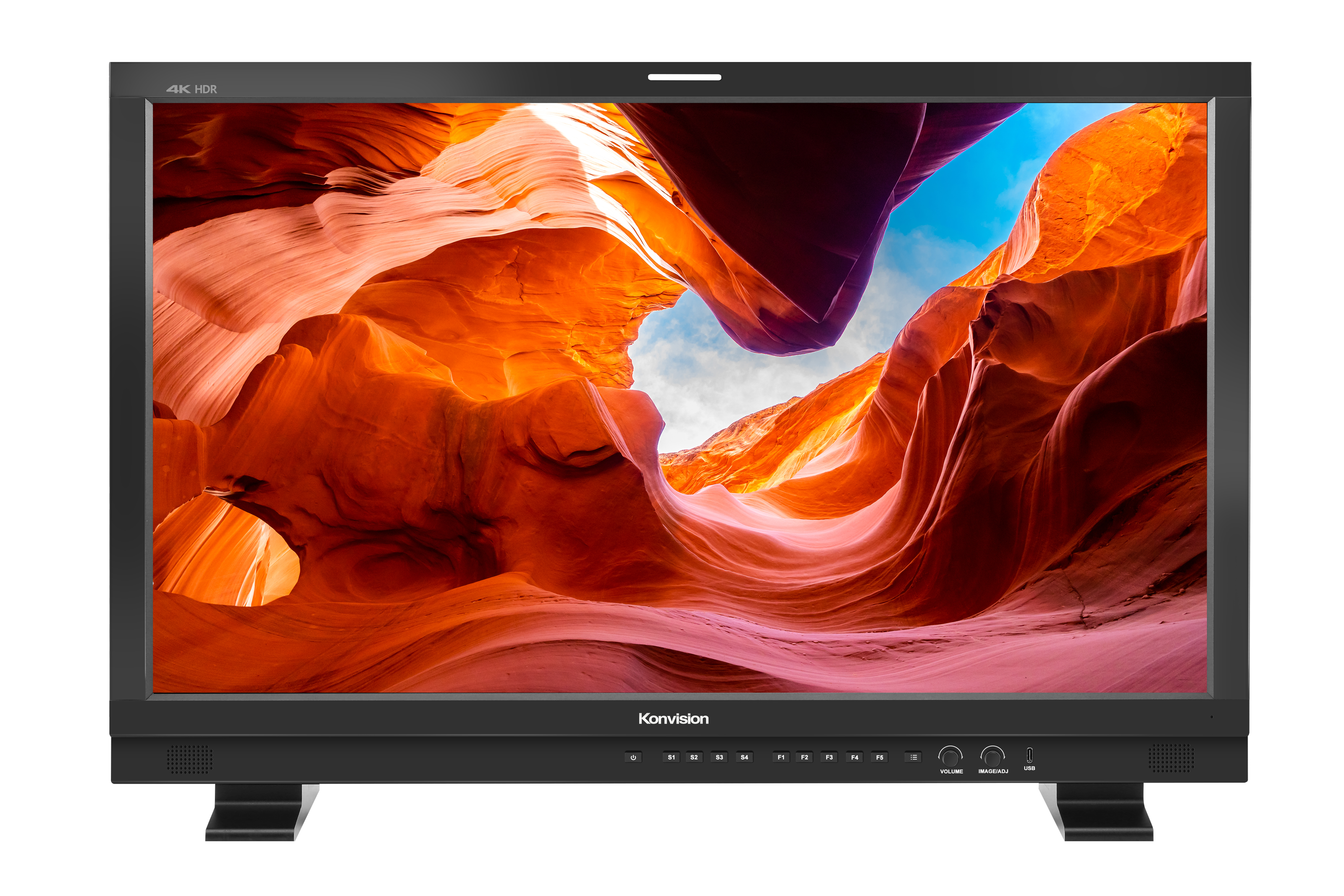

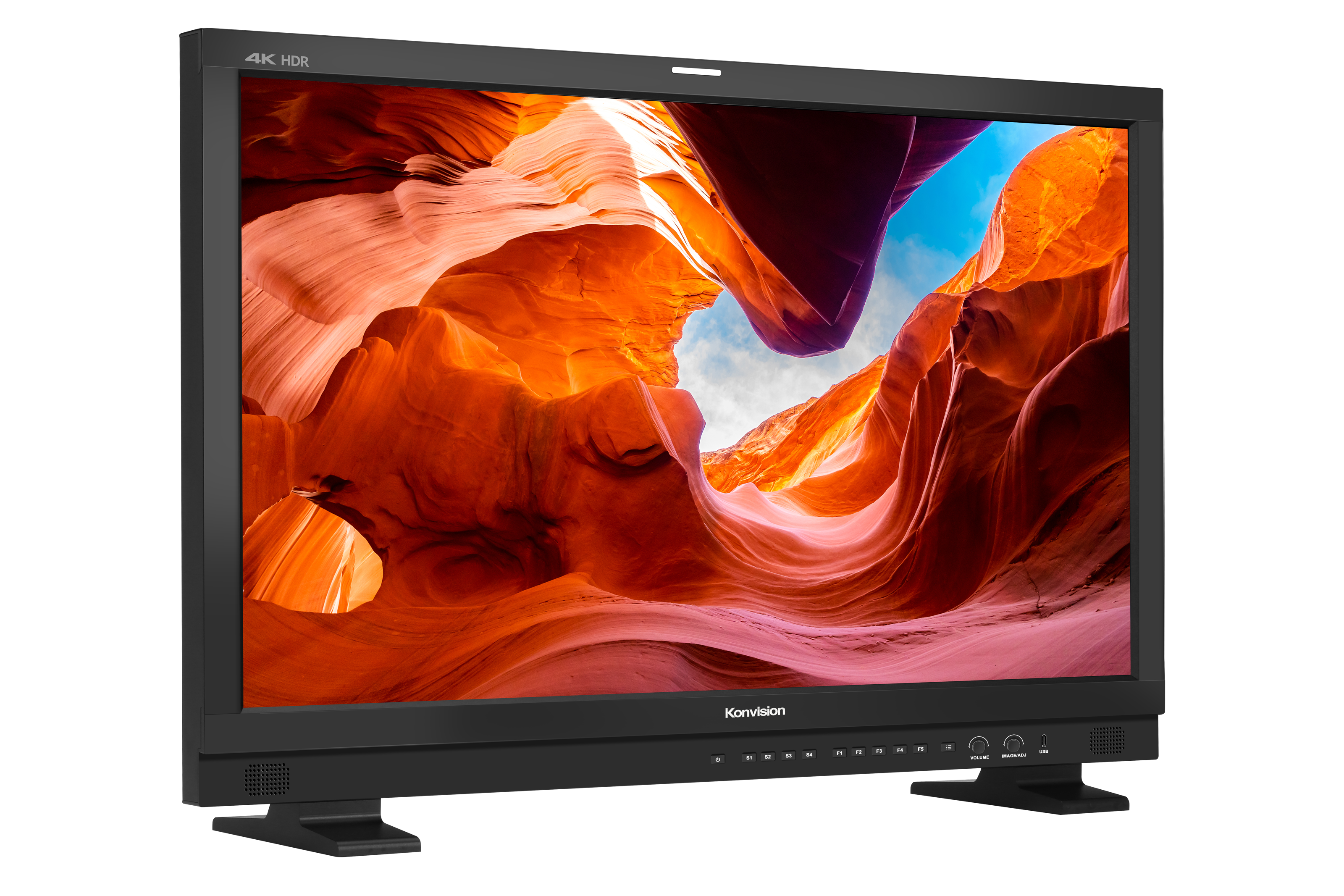

The KXM-2710S is a 27-inch 4K HDR mastering monitor featuring industry-leading QD-OLED display technology with quantum dots. It delivers 1000nits peak brightness, 1,500,000:1 contrast percentage, ≥ 80% BT.2020 color gamut, and 3840×2160 4K resolution with HDR HLG/PQ support. Equipped with 2x12G-SDI input/loop-out, it supports 4K signal processing and 4K HDR to HD SDR down-conversion, making it ideal for HDR mastering, UHD/HD live production, filming, and post-production applications.
Highlights
- 3840x2160 4K/UHD resolution，10Bit QD-OLED panel
- 1000nits brightness(Peak brightness) and 1,500,000:1 contrast ratio
- Supports 4:4:4 12-bit video signal processing
- 2×12G-SDI、2×3G-SDI input/loop-out (4K single/quad-link)
- 4×3G-SDI quad-link (SQD/2SI) up to 4K60p
- 1×SFP+ fiber interface for SDI conversion input
- 12G-SDI Single-link supports signals up to 4096×2160 60p
- 1xHDMI 2.0 input & loop-out, Supports up to 4096×2160 P60HZ
- 3D LUT calibration compatible with ColourSpace/Calman
- Supports color spaces: Rec.709/EBU/DCI-P3/DCI-P3 D65/Rec.2020/Bypass
- Data level：(Auto/Limited (64–940) / Extended (64–1019)/Full (0–1023)/ SMPTE Full(4–1019))
- EOTF options: 2.0/2.2/2.4/2.6/2.4(HDR)
- HDR support: HLG (1.03/1.11/1.16/1.20/1.27/1.33), ST2084PQ/ST2084 PQ/(softroll)
- VPID/Payload ID auto-recognition for color space/EOTF matching
- Multiple camera color space and EOTF conversion to standard color space and EOTF
- USB/network ports for custom LUT files loading & firmware upgrading
- Supports various display modes: 4K / Quad-View / HD Single-View
- Quad view mode for simultaneous SDI/HDMI/SFP+signals
- Independent Gamuts & EOTF settings in quad view mode
- Any window in quad view mode can quickly switch to single view mode
- Supports 4K UHD to 2K HD down-conversion via SDI 2 output
- Supports HDR to SDR down-conversion output via SDI
- HDR area display, HDR/SDR ratio graph and pixel measurement
- HDR Waveform, Vector, Histogram, CIE Chromaticity Diagram, CIE Color Volume，RGB 3D Cube Graph
- Supports horizontal mirror and freeze frame
- False Color, Zebra, Focus Assist, Darkness Check, Highlight Check
- Aspect ratio, Center Marker, Safe Area, Markers with BOX control
- Audio Level Meter, Audio Phase, 5.1/7.1 Surround Phase
- 16-ch embedded audio via SDI, 8-ch via HDMI
- Supports 4.1-channel audio
- VITC1/2, LTC TimeCode, Static/Dynamic UMD/IMD display, Tally lights
- Multiple scene presets; user-defined presets import/export via USB
- GPI remote control for Tally/assist functions/scene preset
- Supports 608/708 Closed Caption(CC)
- Aluminum alloy chassis, built-in speakers
- headphone jack, volume control, and mute settings
- 220V AC power supply
Product Descriptions

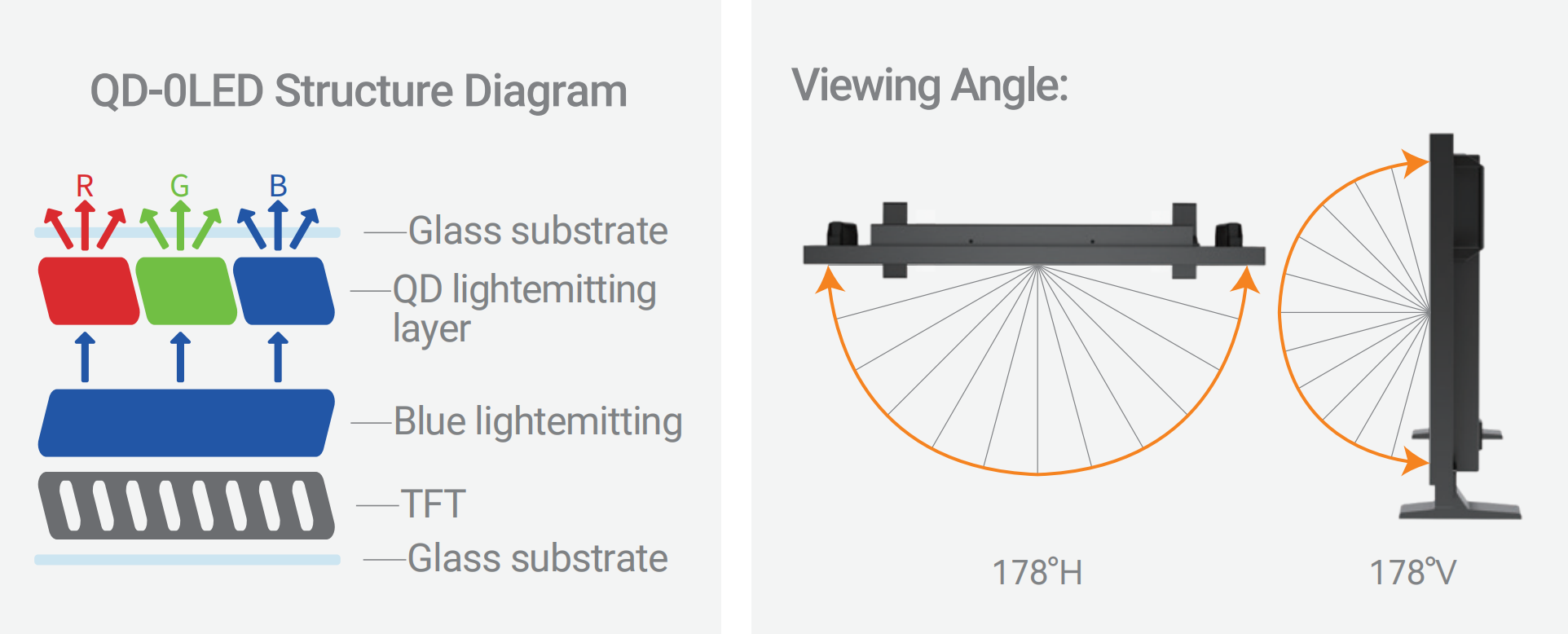

4K Resolution QD-OLED Self-Luminous Panel
Featuring RGB quantum dot self-luminous technology that precisely controls each sub-pixel's color percentage, delivering accurate color reproduction across all brightness levels.178° H/V viewing angles ensure exceptional color and brightness consistency, even during multi-user collaboration or off-axis monitoring.Achieves ≥80% BT.2020 color gamut, 1,500,000:1 contrast percentage, and 1000nits peak brightness for exceptional shadow details.
2x12G-SDI Input/Loop Out, 4K/UHD Monitoring

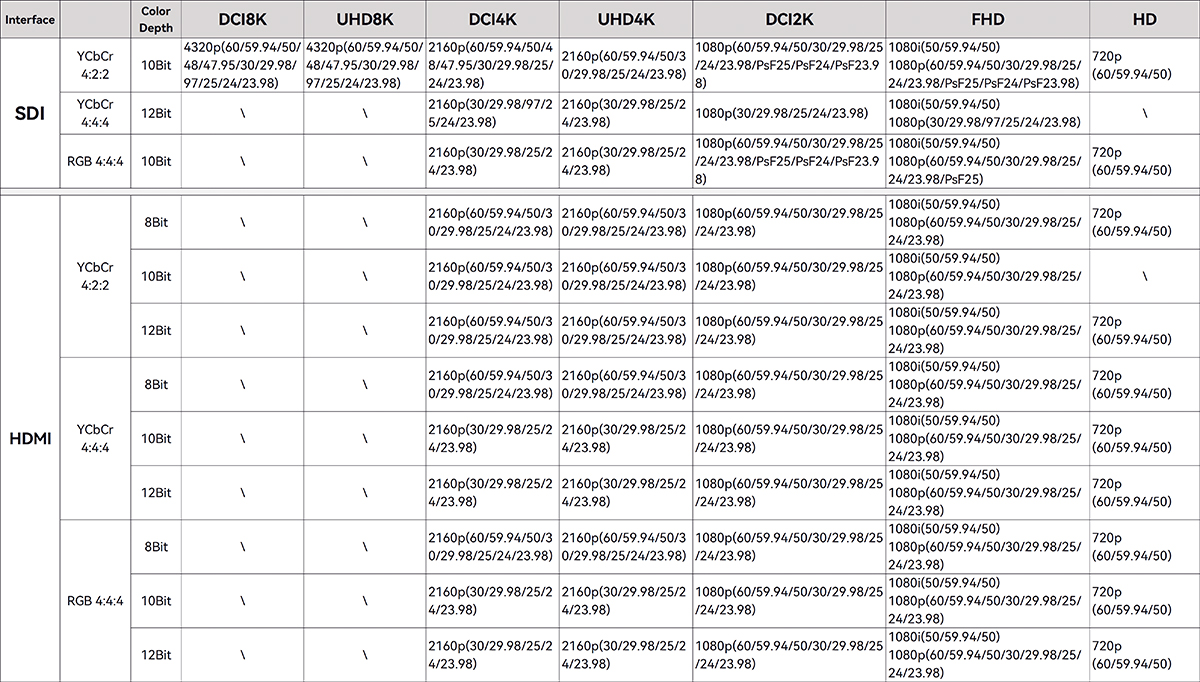

Equipped with 2x12G-SDI, 2x3G-SDI, 1xHDMI, and 1xSFP+ fiber optic interfaces. It supports 4×3G-SDI quad-link or 1×12G-SDI single-link 4K input.
Quad-link input supports SQD and 2SI formats
4K 2 Sample Interleave (2SI) ：Pixel based segmentation
4K Square Division (SQD) ：Quadrant based segmentation
3D LUT Color Calibration
Tetrahedral 3D LUT interpolation color calibration technology. Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A/CR100 probe(professional level) to achieve a precise color. Monitor's also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

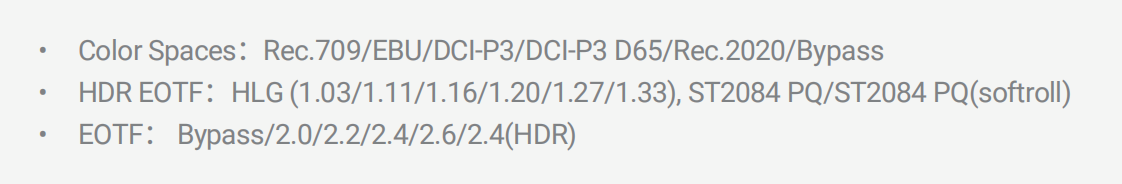

Multiple HDR/Color Spaces Available
Supports high dynamic range (HDR) monitoring, providing standard HDR EOTF (Electro-Optical Transfer Function) with built-in various standard color spaces and Gamma. It also supports VPID reading display and Payload ID recognition, automatically matching color space and EOTF.
Camera Log Color Pipeline
Built-in Log for a variety of mainstream camera brands, which can realize the corresponding conversion of camera color space and EOTF to standard color space and EOTF, ensuring consistent color reproduction - ideal for critical monitoring and color grading applications.
4K HDR-HD SDR Down-Conversion
Single-link SDI can realize 4K-HD down-conversion and HDR-SDR conversion. Support NBCU LUTs, CMG LUTs production standards, to meet the 4K HDR and HD SDR high-quality production needs.
Customizable 3D LUT Import & Output
Users can load and save 8 custom 3D LUTs via USB port/network port. Custom LUTs can also be set to output with the video display, effectively simplifying the color grading process for DIT and post-production work.
Quad-View：Mixed Inputs & Frame Rates
The Quad view mode supports the simultaneous input of four different signal sources, allowing for mixed resolution and frame rate signals to be displayed together via SDI/HDMI/SFP+. Each split window can independently set Color Space and EOTF, as well as display HDR waveforms separately. This enables centralized monitoring of the entire system in a limited space, with the ability to quickly switch to a single view from any window.
HDR Area Display
Calculate and displays the percentage of HDR reference white (＞203 nits) and HDR-mapped white (＞260 nits) in the overall image. If exceeding the reference values, a warning will be issued.
Professional Image Analysis Tools
Specifications
| Display Size | 27" |
| Back Light | QD-OLED |
| Resolution | 3840×2160 |
| Aspect Ratio | 16 : 9 |
| Viewing Angle | 178°(H) / 178°(V) |
| Color Depth | 1.07B |
| Brightness | 1000cd/m² (Peak brightness) |
| Contrast Ratio | 1,500,000:1 |
