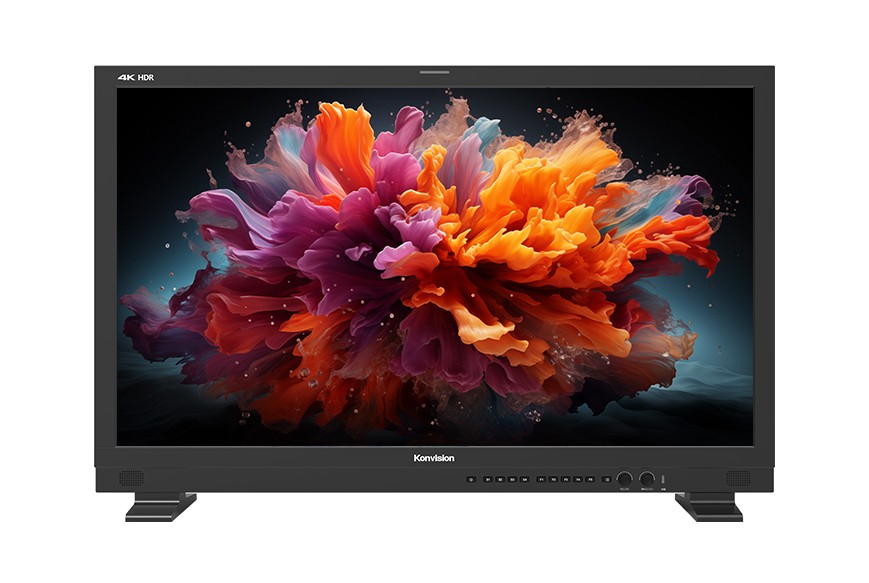

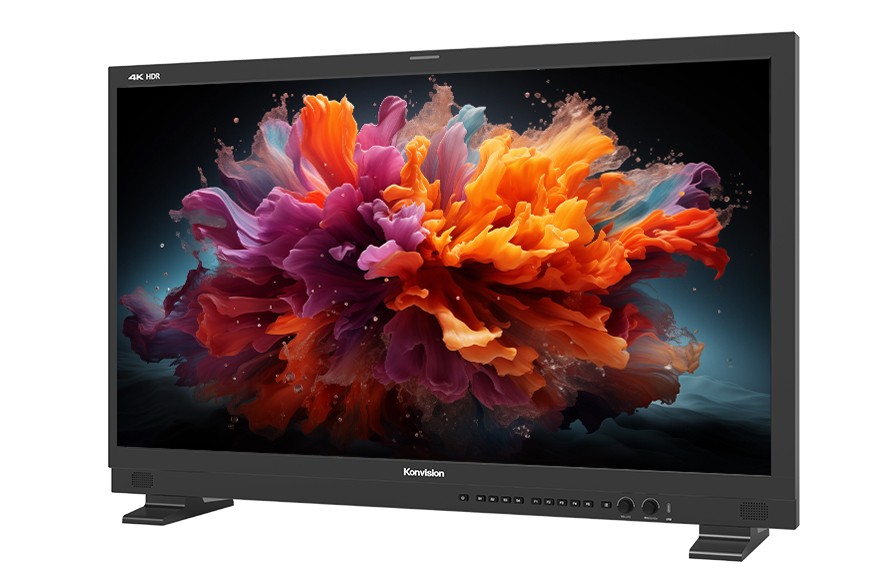

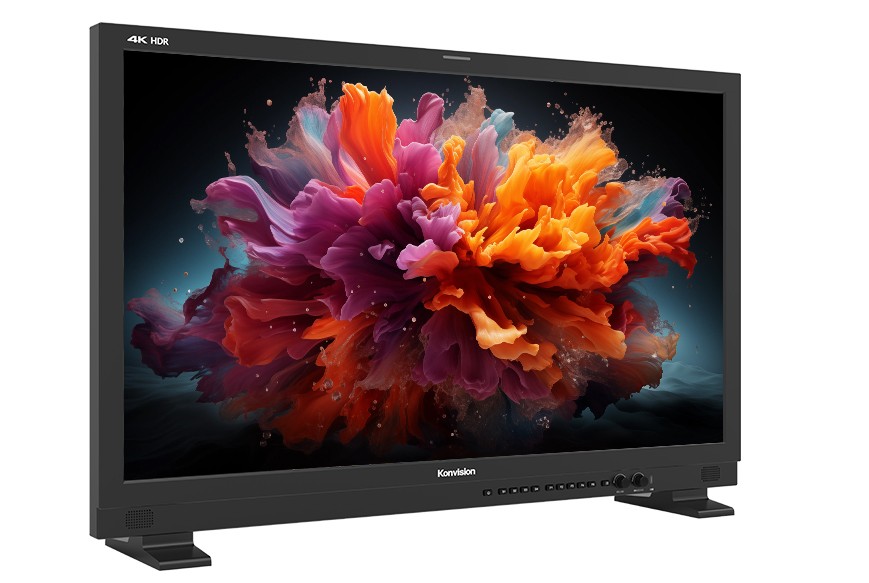

KXM-3210S

32”4K HDR QD-OLED Monitor

The KXM-3210S is a 31.5-inch 4K/8K HDR mastering monitor featuring  industry-leading QD-OLED display technology with quantum dots. It  delivers 1000nits peak brightness, 1,500,000:1 contrast percentage, ≥ 80% BT.2020 color gamut, and 3840×2160 4K resolution with HDR  HLG/PQ support. Equipped with dual 12G-SDI input/loop-out, it  supports 4K signal processing and 4K HDR to HD SDR down-conversion, making it ideal for HDR mastering, UHD/HD live production,  filming, and post-production applications.

Highlights Product Descriptions Specifications

Highlights

- QD-OLED panel with 178° viewing angle and 3840×2160 4K resolution

 - 1000nits peak brightness, 1,500,000:1 contrast, ≥80% BT.2020 coverage

- 12-bit video signal processing with zero delay display

- 2x12G-SDI & 2x3G-SDI inputs and outputs, 4K single-link & quad-link

- 4x3G SQD & 2SI formats support 4K60P signals

- 1xSFP+ optical module interface, supporting SDI conversion input

- 1xHDMI 2.0 input & loop-out, supporting SDI/SFP+ conversion output

- 3D LUT color calibration support for ColourSpace & Calman

- Supports color spaces: Rec.709/EBU/DCI-P3/DCI-P3 D65/Rec.2020

- Multiple gamma options: Gamma 2.0/2.2/2.4/2.6

- HDR support: HLG (1.03/1.11/1.16/1.20/1.27/1.33), ST2084 PQ/(soft roll)

- VPID reading & Payload ID recognition, auto-match gamut & EOTF

- Camera Gammas & EOTF to Standard Gamuts Conversion

- USB/network ports for custom LUT files loading & firmware upgrading

- Quad view mode for simultaneous SDI/HDMI/SFP+signals

- Independent Gamuts & EOTF settings in quad view mode

- Any window in quad view mode can quickly switch to single view mode

- 4K HDR to 2K SDR down-conversion, custom 3D LUT output

- HDR area display, HDR/SDR ratio graph and pixel measurement

- Waveform, Vector, Histogram, CIE Chromaticity Diagram, CIE Color Volume

- Mirror, Rotation, Zoom, Freeze, Full Scan, Overscan, H/V delay

- False Color, Zebra, Focus Assist, Blue/Mono Only

- Darkness Check, Highlight Check

- Aspect ratio, Center Marker, Safe Area, Markers with BOX control

- Audio Level Meter, Audio Phase, 5.1/7.1 Surround Phase

- Each SDI support 16ch Embedded Audio Meters & 2-channel output

- Supports 4.1-channel audio

- VITC1/2, LTC Time Code, Static/Dynamic UMD/IMD display, Tally lights

- 5 Scene Presets, S1-S5 Shortcut keys, supporting custom settings

- GPI remote control for Tally, Auxiliary functions, and scene presets

- Supports 608/708 Closed Caption

- Aluminum alloy, Build-In Speakers

- 3.5mm Headphone Jack, Volume adjustment

- 12V DC & 220V AC power supply



Product Descriptions

4K Resolution QD-OLED Panel

Featuring QD-OLED display technology with quantum dots that precisely  controls each sub-pixel's color percentage, delivering accurate color reproduction across all brightness levels. Achieves ≥80% BT.2020 color gamut,  1,500,000:1 contrast percentage, and 1000nits peak brightness for exceptional shadow details.





IPS LCD Panel, UHD/4K Resolution

Equipped with a 17.3-inch IPS LCD panel that features a 178° H/V wide  viewing angle, accurate color reproduction, and fast response speed. It  supports a 4K/UHD resolution of 3840×2160, with a pixel density that is  four times that of Full HD, resulting in a more detailed picture quality.

65" 4K HDR Monitor with 12G-SDI




2x12G-SDI Input/Loop Out, 4K/UHD Monitoring

Equipped with 2x12G-SDI, 2x3G-SDI, 1xHDMI, and 1xSFP+ fiber optic  interfaces. It supports 4×3G-SDI quad-link or 1×12G-SDI single-link 4K  input.




Quad-link input supports SQD and 2SI formats

27”8K HDR Monitor

4K 2 Sample Interleave (2SI) :Pixel based segmentation

27”8K HDR Monitor

4K Square Division (SQD) :Quadrant based segmentation






3D LUT Color Calibration

Tetrahedral 3D LUT interpolation color calibration technology. Compatible  with ColourSpace and Calman calibration software, Konvision monitors  apply K10-A/CR100 probe(professional level) to achieve a precise color.  Monitor's also workable with universal colorimeters including CA210,  CA310, CS200, CR100, CR250, X-Rite i1 Display.

32" 8K HDR monitor



Multiple HDR/Color Spaces Available

Supports high dynamic range (HDR) monitoring, providing standard HDR  EOTF (Electro-Optical Transfer Function) with built-in various standard  color spaces and Gamma. It also supports VPID reading display and Payload ID recognition, automatically matching color space and EOTF.

• Color Spaces: Rec.709/EBU/DCI-P3/DCI-P3 D65/Rec.2020

• HDR EOTF: HLG (1.03/1.11/1.16/1.20/1.27/1.33) 、ST2084 PQ/(softroll)

• Gamma: 2.0/2.2/2.4/2.6

17"8K HDR Monitor




Camera Log Color Pipeline

Built-in Log for a variety of mainstream camera brands, which can realize the corresponding conversion of camera color space and EOTF to standard color space and EOTF, ensuring consistent color reproduction - ideal for critical monitoring and color grading applications.






4K HDR-HD SDR Down-Conversion

Single-link SDI can realize 4K-HD down-conversion and HDR-SDR  conversion. Support NBCU LUTs, CMG LUTs production standards, to  meet the 4K HDR and HD SDR high-quality production needs.





Customizable 3D LUT Import & Output

Users can load and save 8 custom 3D LUTs via USB port/network port.  Custom LUTs can also be set to output with the video display, effectively  simplifying the color grading process for DIT and post-production work.

17" 4K HDR Monitor with 12G-SDI




Quad-View:Mixed Inputs & Frame Rates

The Quad view mode supports the simultaneous input of four different  signal sources, allowing for mixed resolution and frame rate signals to  be displayed together via SDI/HDMI/SFP+. Each split window can  independently set Color Space and EOTF, as well as display HDR  waveforms separately. This enables centralized monitoring of the  entire system in a limited space, with the ability to quickly switch to a  single view from any window.





HDR Area Display

Calculate and displays the percentage of HDR reference white (>203  nits) and HDR-mapped white (>260 nits) in the overall image. If exceeding the reference values, a warning will be issued.





Professional Image Analysis Tools




Specifications

Panel
Display Size31.5"
Back LightQD-OLED
Resolution3840×2160
Aspect Ratio16 : 9
Viewing Angle178°(H) / 178°(V)
Color Depth1.07B
Brightness1000cd/m² (Peak brightness)
Contrast Ratio1,500,000:1



Input
Output
Compatible SDI Formats
Audio In/Out
General
