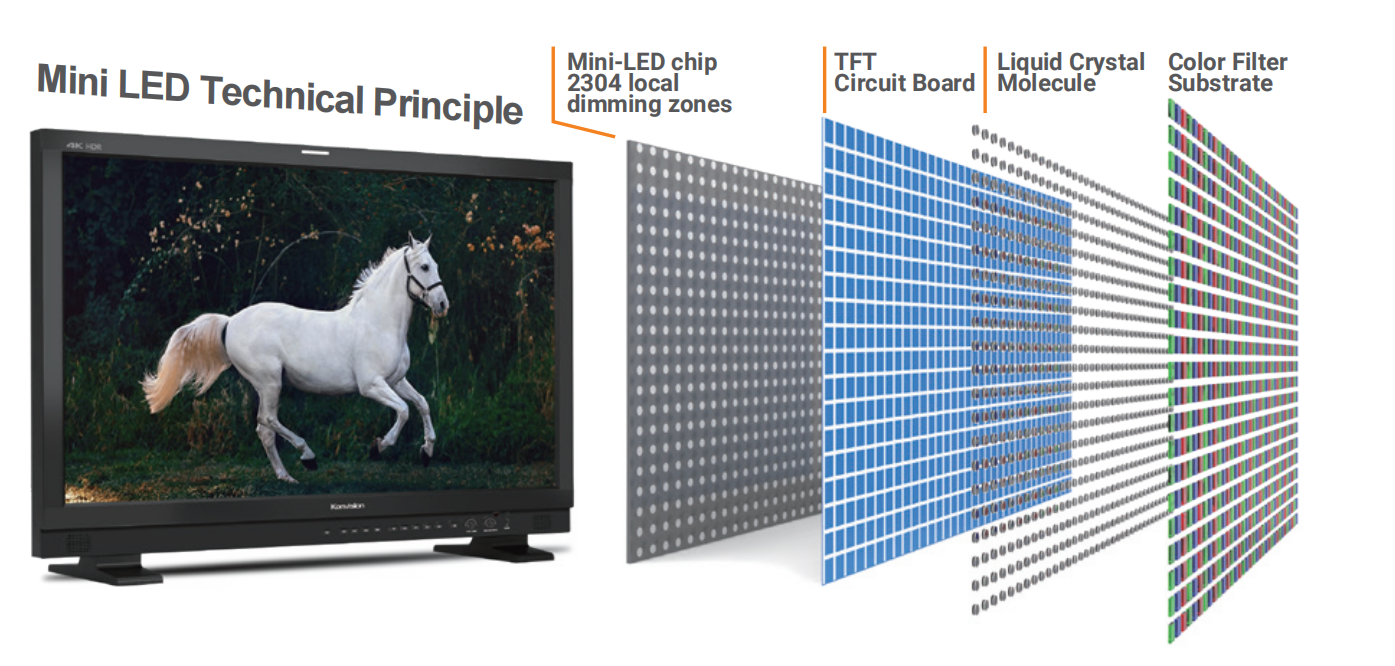

4K Panel with Mini-LED Full Array Local Dimming

It features a 31.5-inch 10-bit IPS LCD panel with 178° (H)/178° (V) viewing  angle and 3840×2160 4K resolution and equipped with Mini-LED full array  backlight technology featuring 2304 independent dimming zones.  Advanced algorithm enables precise brightness adjustment for each zone  based on content, delivering superior backlight uniformity.

Maximum Edge Clarity, Minimum Halo

The output efficiency of each Mini-LED is greatly improved through the local dimming system,the light of each zone is well distributed with less halo and more details, makes the dark darker and the light brighter.

Motion-Adaptive Interlace to Progressive

Realizing quick response of the fast moving image, avoids duzzy, saw tooth and other problems, ensures clearer and smoother image, well-satisfied high-end demanding workflows such as live sports, camera shaking and rolling subtitles etc.

2x12G-SDI Input/Loop Out, 4K/UHD Monitoring

Equipped with 2x12G-SDI, 2x3G-SDI, 1xHDMI, and 1xSFP+ fiber optic  interfaces. It supports 4×3G-SDI quad-link or 1×12G-SDI single-link 4K  input.

Quad-link input supports SQD and 2SI formats

4K 2 Sample Interleave (2SI) ：Pixel based segmentation

4K Square Division (SQD) ：Quadrant based segmentation

3D LUT Color Calibration

Tetrahedral 3D LUT interpolation color calibration technology. Compatible  with ColourSpace and Calman calibration software, Konvision monitors  apply K10-A/CR100 probe(professional level) to achieve a precise color.  Monitor's also workable with universal colorimeters including CA210,  CA310, CS200, CR100, CR250, X-Rite i1 Display.

Multiple HDR/Color Spaces Available

Supports high dynamic range (HDR) monitoring, providing standard HDR  EOTF (Electro-Optical Transfer Function) with built-in various standard  color spaces and Gamma. It also supports VPID reading display and Payload ID recognition, automatically matching color space and EOTF.

• Color Spaces: Rec.709/EBU/DCI-P3/DCI-P3 D65/Rec.2020

• HDR EOTF: HLG (1.03/1.11/1.16/1.20/1.27/1.33) 、ST2084 PQ/(softroll)

• Gamma: 2.0/2.2/2.4/2.6

Camera Gammas to Standard Gamuts Conversion

Built-in various mainstream camera gamma curves enable the conversion  of camera color space and EOTF to standard color space and EOTF.

4K HDR-HD SDR Down-Conversion

Single-link SDI can realize 4K-HD down-conversion and HDR-SDR  conversion. Support NBCU LUTs, CMG LUTs production standards, to  meet the 4K HDR and HD SDR high-quality production needs.

Customizable 3D LUT Import & Output

Users can load and save 8 custom 3D LUTs via USB port/network port.  Custom LUTs can also be set to output with the video display, effectively  simplifying the color grading process for DIT and post-production work.

Quad-View：Mixed Inputs & Frame Rates

The Quad view mode supports the simultaneous input of four different  signal sources, allowing for mixed resolution and frame rate signals to  be displayed together via SDI/HDMI/SFP+. Each split window can  independently set Brightness, Color Space and EOTF, as well as display HDR  waveforms separately. This enables centralized monitoring of the  entire system in a limited space, with the ability to quickly switch to a  single view from any window.

HDR Area Display

Calculate and displays the percentage of HDR reference white (＞203  nits) and HDR-mapped white (＞260 nits) in the overall image. If exceeding the reference values, a warning will be issued.

Professional Image Analysis Tools
