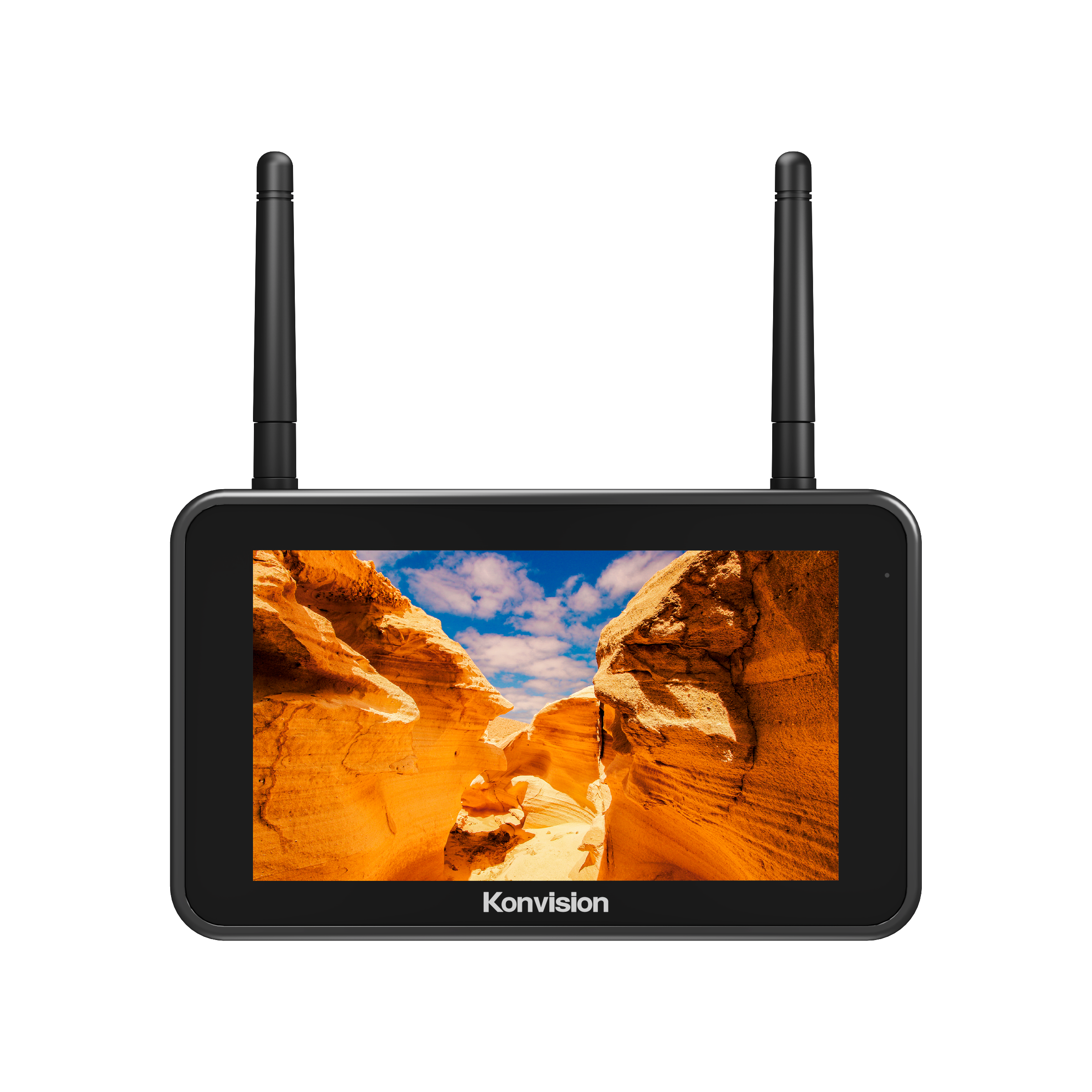

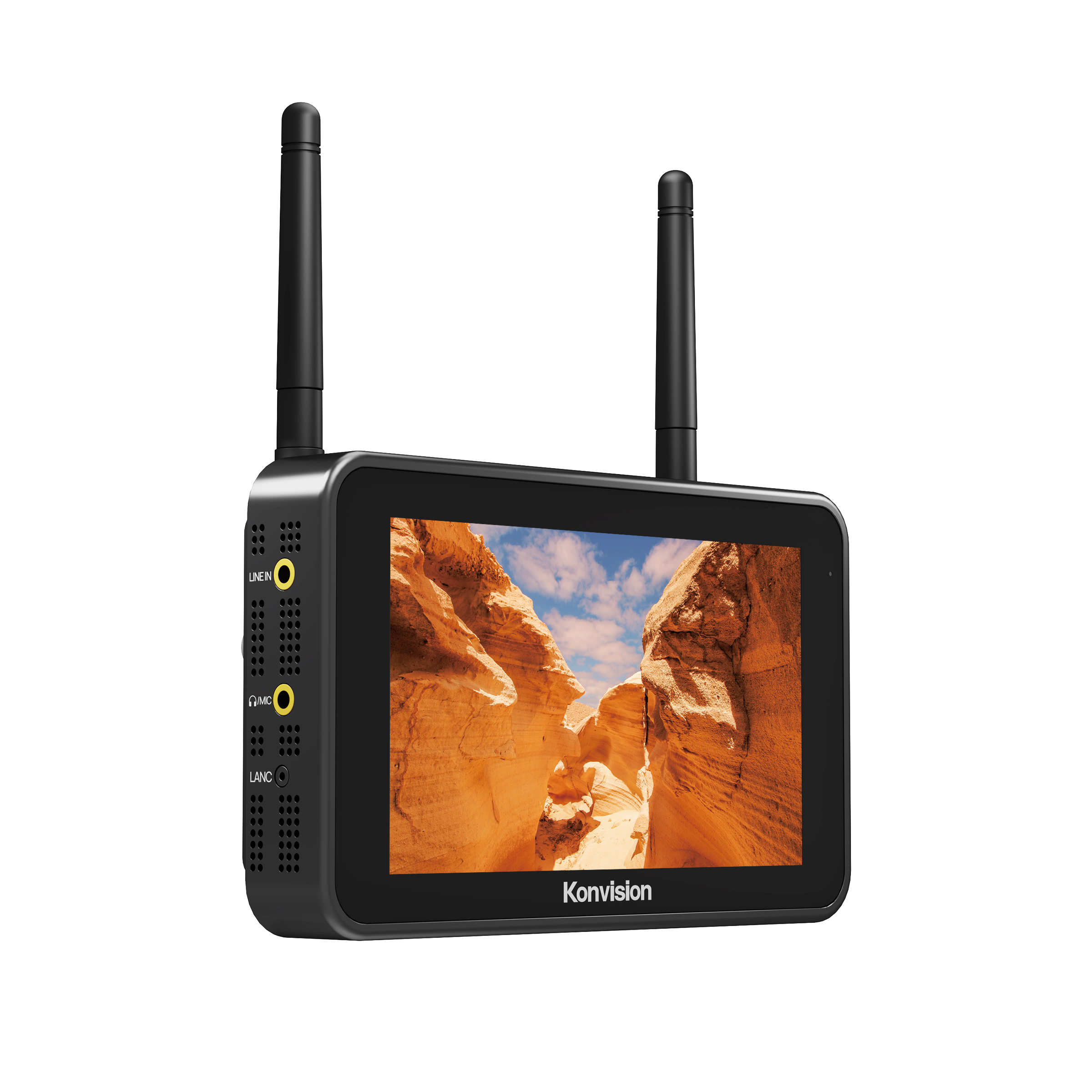

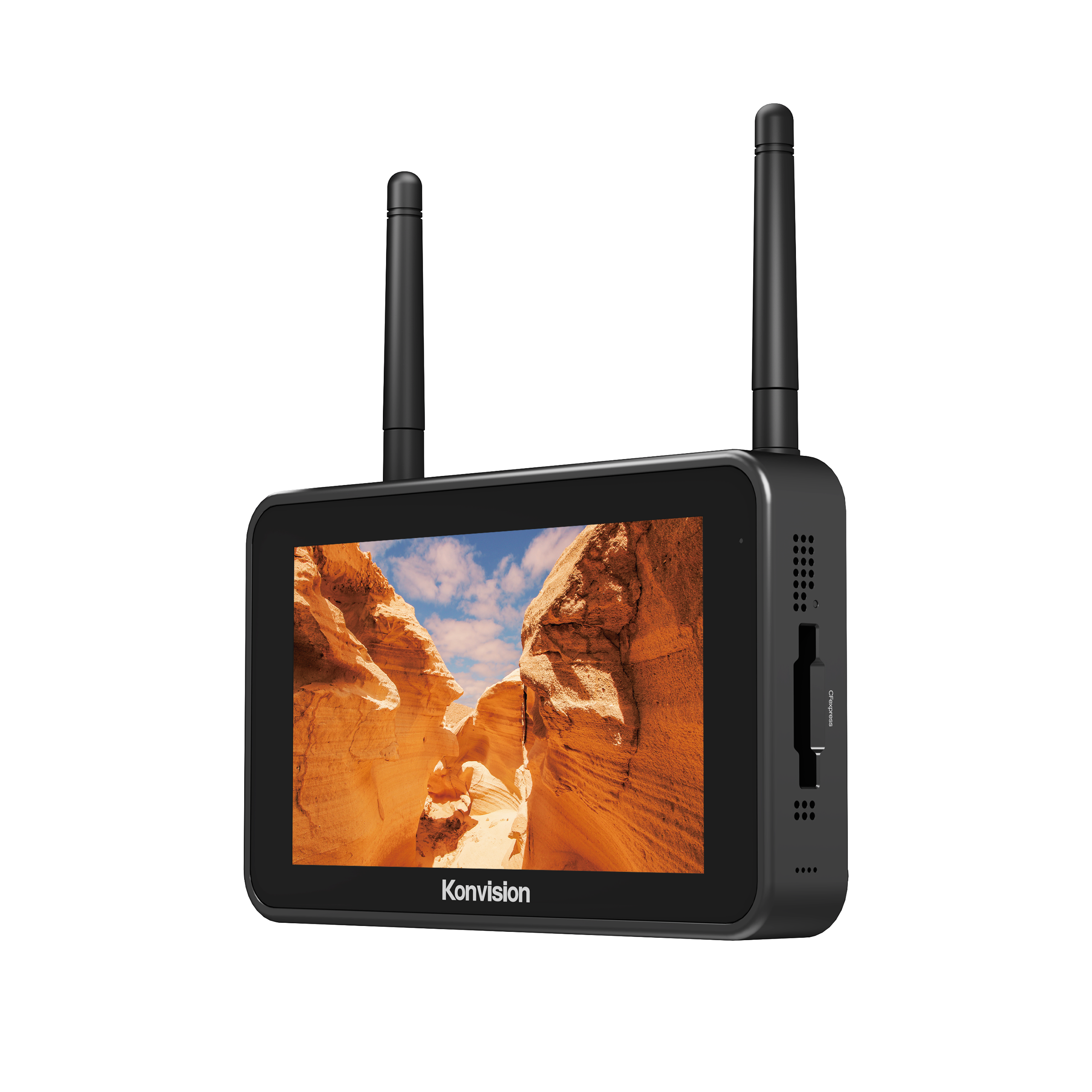

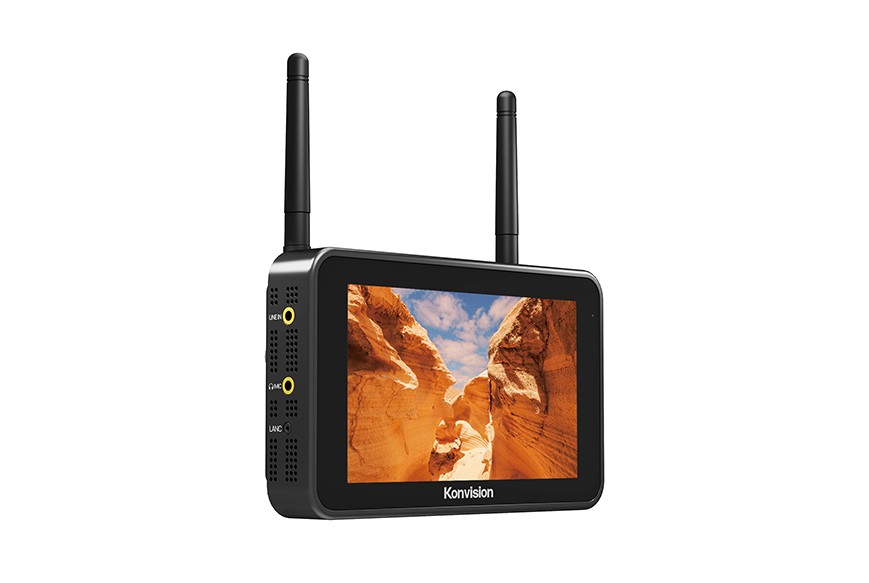

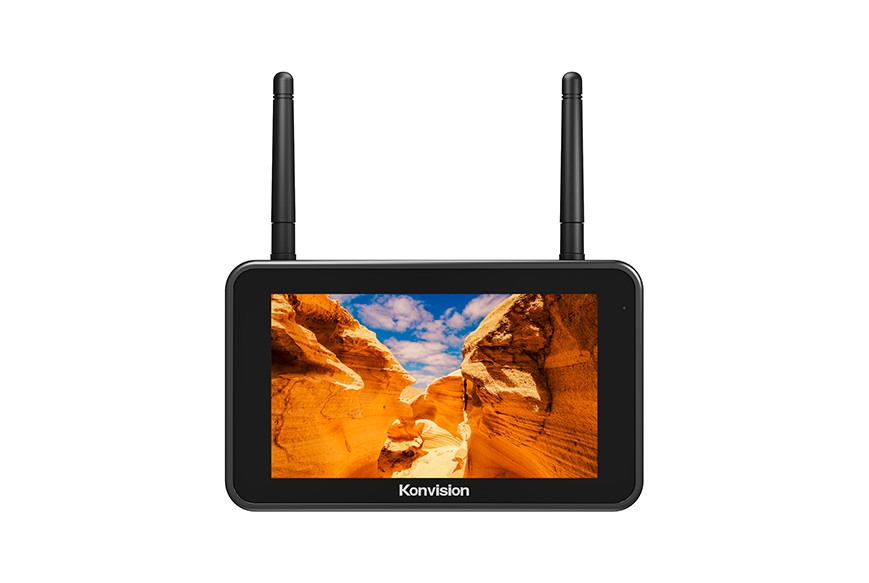

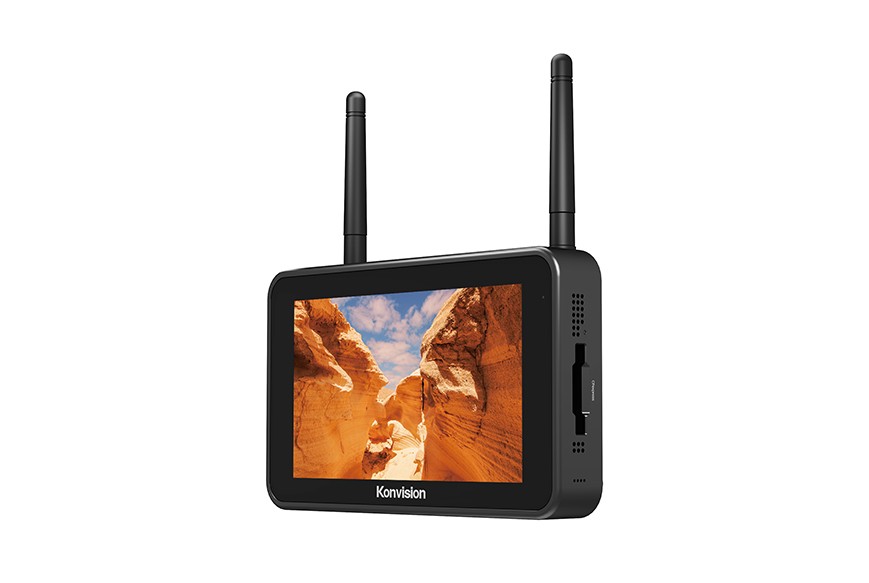

The N5 is a 5.5-inch portable recording monitor integrating professional signal monitoring, video recording, instant editing, and live streaming capabilities.Featuring a 1700nits high-brightness, the N5 is designed for mirrorless cameras, cinema cameras, professional camcorders, stabilized camera rigs, and other production equipment. It supports 4K HDR monitoring with comprehensive monitoring tools including focus assist and waveform monitoring.It supports UHD 4K 60p 10-bit 4:2:2 video recording with H.264 All-Intra and Long GOP codecs. With Wi-Fi 6, Ethernet, and other network connectivity options, the N5 provides flexible live streaming capabilities and an all-in-one workflow solution for on-set production.
Highlights
- 5.5 inch 1920x1080 resolution
- 1 x 12G/6G/3G/HD/SD-SDI input or 1 x 12G/6G/3G/HD-SDI outputs
- 1 x HDMI 2.0 input & 1 x HDMI 2.0 output
- 4K to HD conversion. Recording Codec: H.264 Long GOP MQ (MP4) / H.264 All-Intra (MXF)
- Recording sources including SDI, HDMI, CAM, and FILE
- Pre-roll Recording, Segment Recording, Recording Recovery
- Wi-Fi 6, USB network adapters, Ethernet, and other network connectivity options
- Instant editing and production functions, including picture-in-picture and image overlay
- Timecode (SDI/Date Time/User Bit), recording trigger, and SDI output
- HDMI / SDI camera control and recording
- Multiple camera color space and OETF conversion to standard color space and EOTF
- Equipped with 12G-SDI and HDMI 2.0 interfaces, supporting cross conversion between 12G-SDI and HDMI signals.
- Equipped with one USB-C 2.0 port for webcam input and one USB-C 3.0 port for external storage recording and webcam output
- Data Level down mapping, color matrix conversion, and 3D LUT processed output
- 3D LUT calibration compatible with ColourSpace/Calman
- Multiple custom 3D LUTs loading,Output with custom 3D LUT files
- Full list review or custom playlist review.Enable frame-by-frame, fast play, slow play, loop play, and other operations
- Analog audio input,built-in speakers, 3.5mm headphone jack output, and mute settings
- PD power supply and battery operation; hot‑swap batteries without power‑off
- Aluminum alloy chassis, rear‑side Tally light indicato
Product Descriptions
Super‑Bright & Large 5.5‑inch Touch Screen
N5 adopts a 5.5‑inch IPS touch LCD screen with a 1920×1080 FHD resolution, and 1700 nits high brightness, enabling it to display images plainly even in direct sunlight.

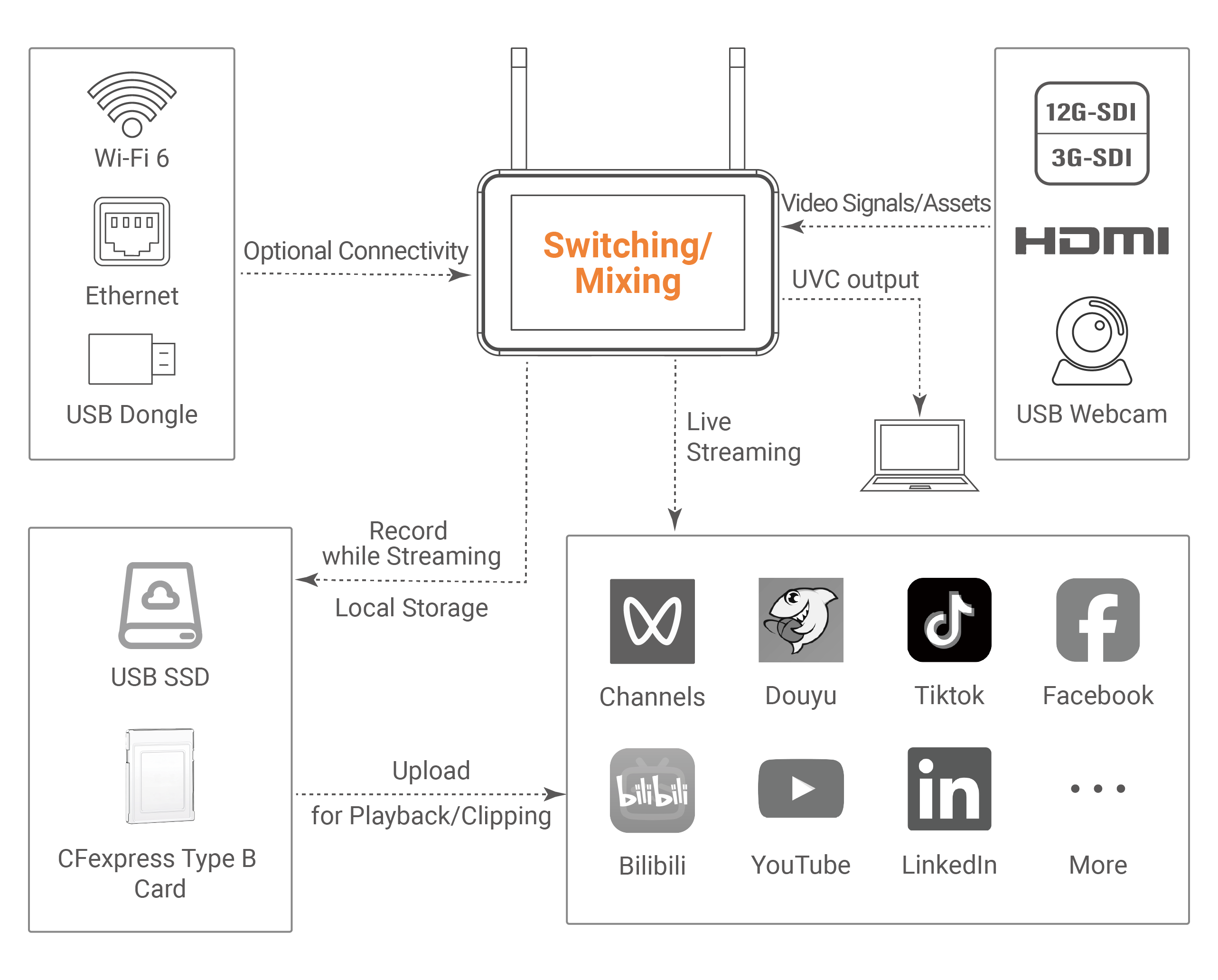

Wireless & Ethernet Live Streaming: Multi-Platform Streaming + UVC Capture + Local Recording
Supports connection via Wi-Fi, USB 4G/5G dongles, and Ethernet. Utilizing RTMP/SRT protocols, it streams up to 1080p60 directly to two platforms simultaneously. Supports UVC output for seamless integration into computer-based streaming software for enhanced effects and platform expansion.Set bitrates up to 20 Mb/s based on network conditions. Supports local recording during live streaming for immediate VOD uploads or highlight clipping after the broadcast.

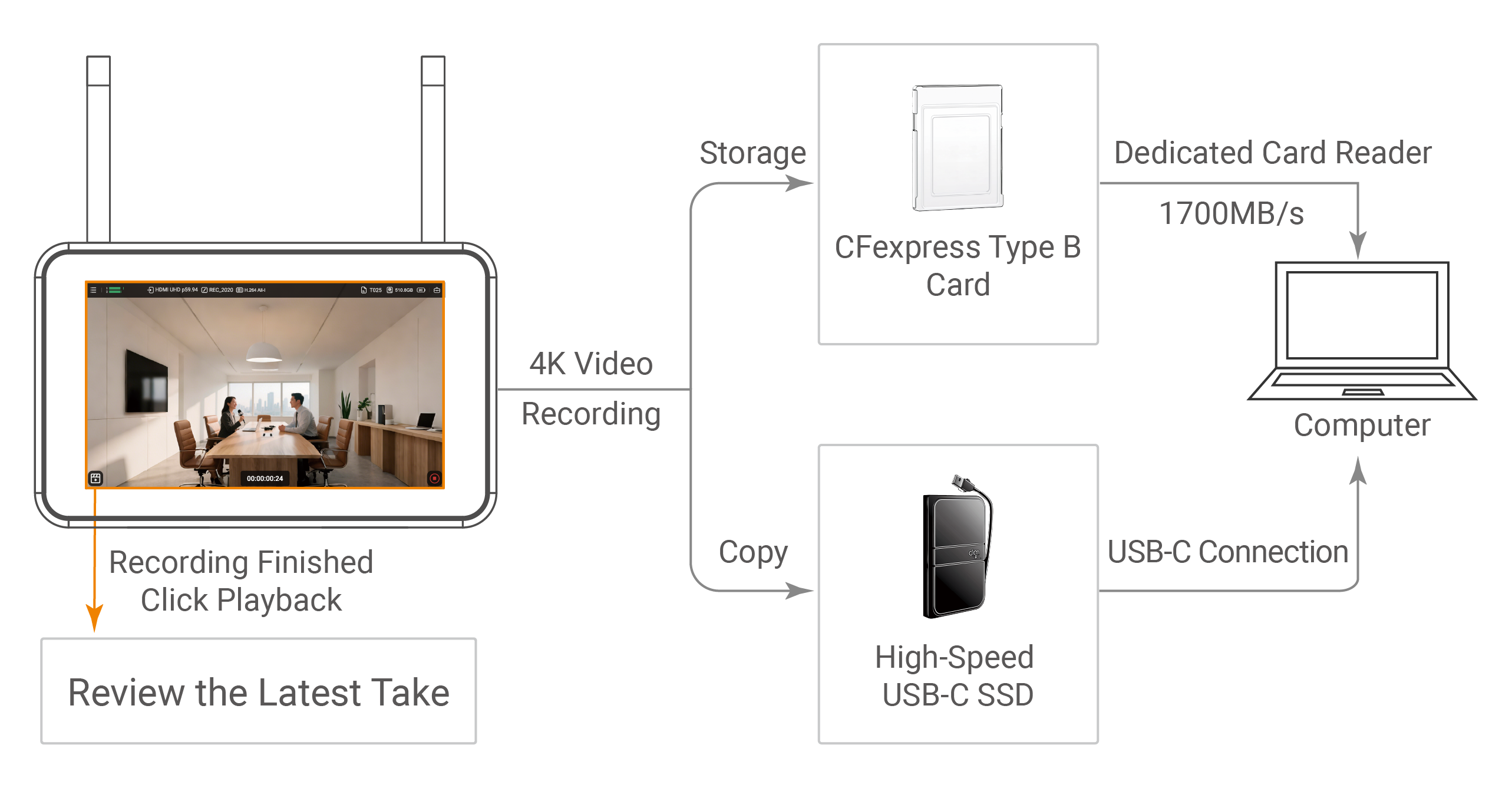

Record to CFexpress Type B | High-Speed USB-C SSDs
Supports industry-standard CFexpress Type B cards and high-speed USB-C SSDs for 4K video recording with sustained read / write speeds up to 1700 MB/s. Recorded footage can be efficiently offloaded to computer or internally backed up to the SSD from the monitor via USB-C cable. Features instant playback capability--click the playback button to immediately review the latest take.

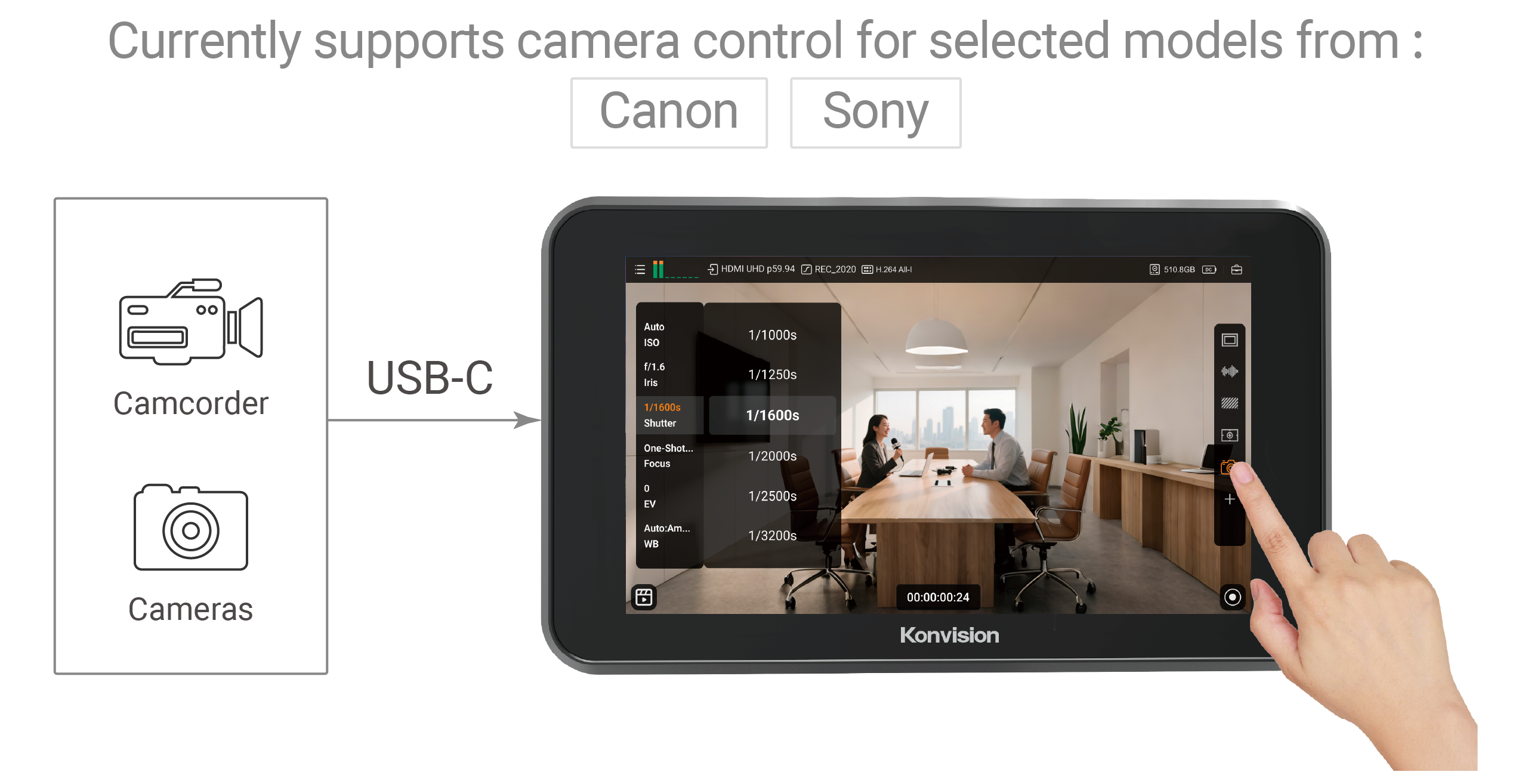

Camera Control | Efficient Collaborative Adjustments
Supports communication with cameras via USB-C. The monitor features a built-in UI for adjusting camera parameters, allowing intuitive touch-based control and monitoring. Features Touch-to-Focus for precise exposure and focus tracking.

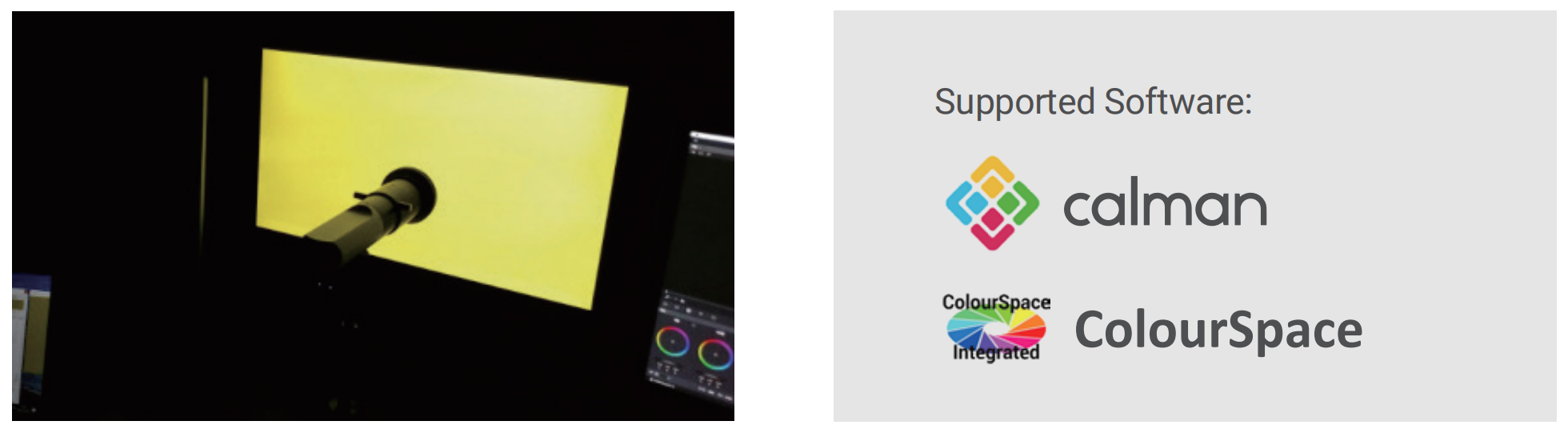

3D LUT Color Calibration
Tetrahedral 3D LUT interpolation color calibration technology. Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A/CR100 probe(professional level) to achieve precise color calibration.
Multiple HDR/Color Spaces Available
Supports high dynamic range (HDR) monitoring, providing standard HDR EOTF (Electro-Optical Transfer Function) with built-in various standard color spaces and EOTF.

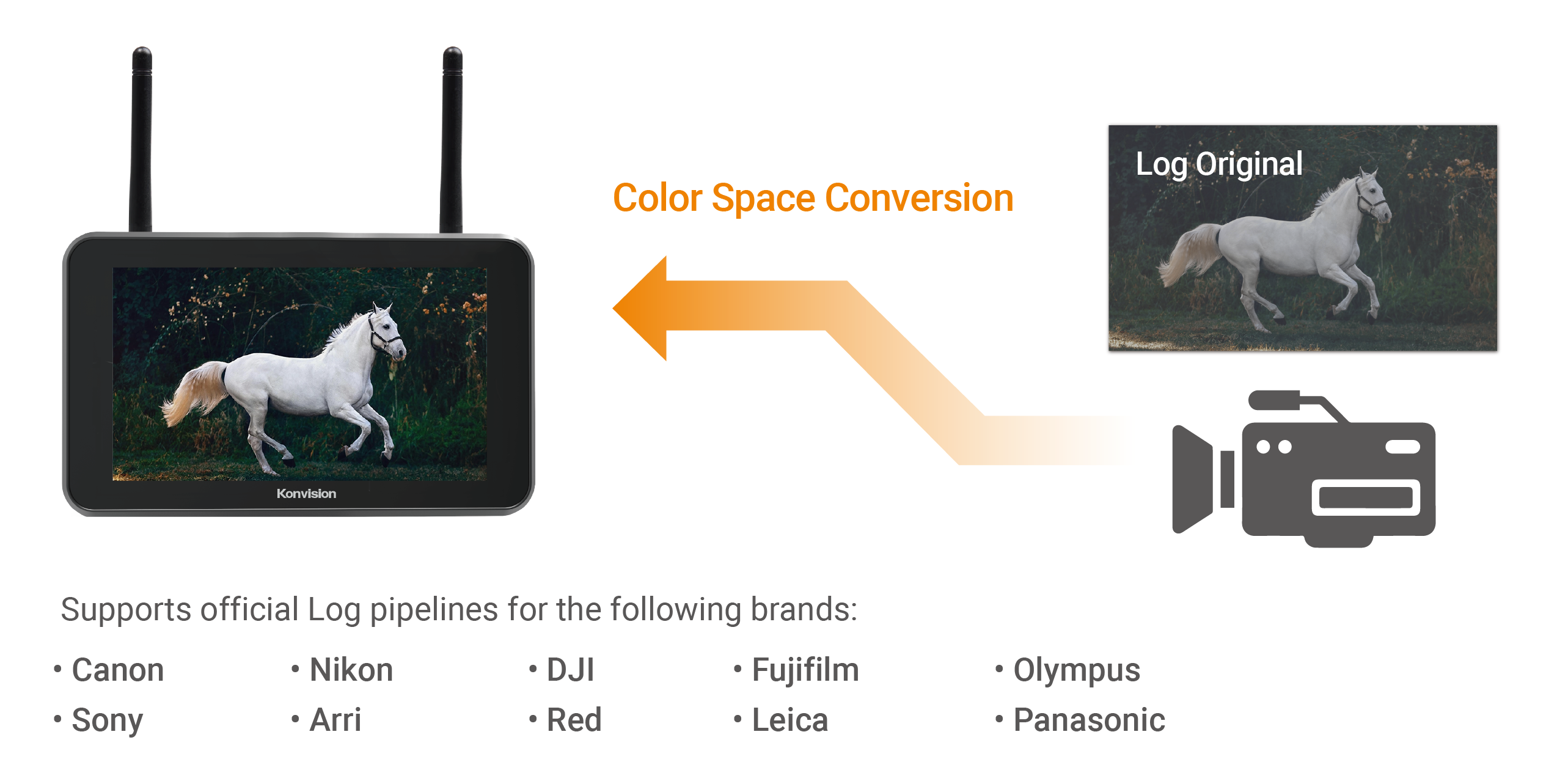

Preset Log Color Pipelines | Supports HDR Monitoring
When receiving Log signals, the monitor utilizes preset official Log-to-HDR/SDR conversion pipelines for major camera brands to display correct gamma and saturation. This allows users to confirm exposure settings accurately before recording.
4K HDR-HD SDR Down-Conversion
Single-link SDI can realize 4K-HD down-conversion and HDR-SDR conversion. Support NBCU LUTs, CMG LUTs production standards, to meet the 4K HDR and HD SDR high-quality production needs.

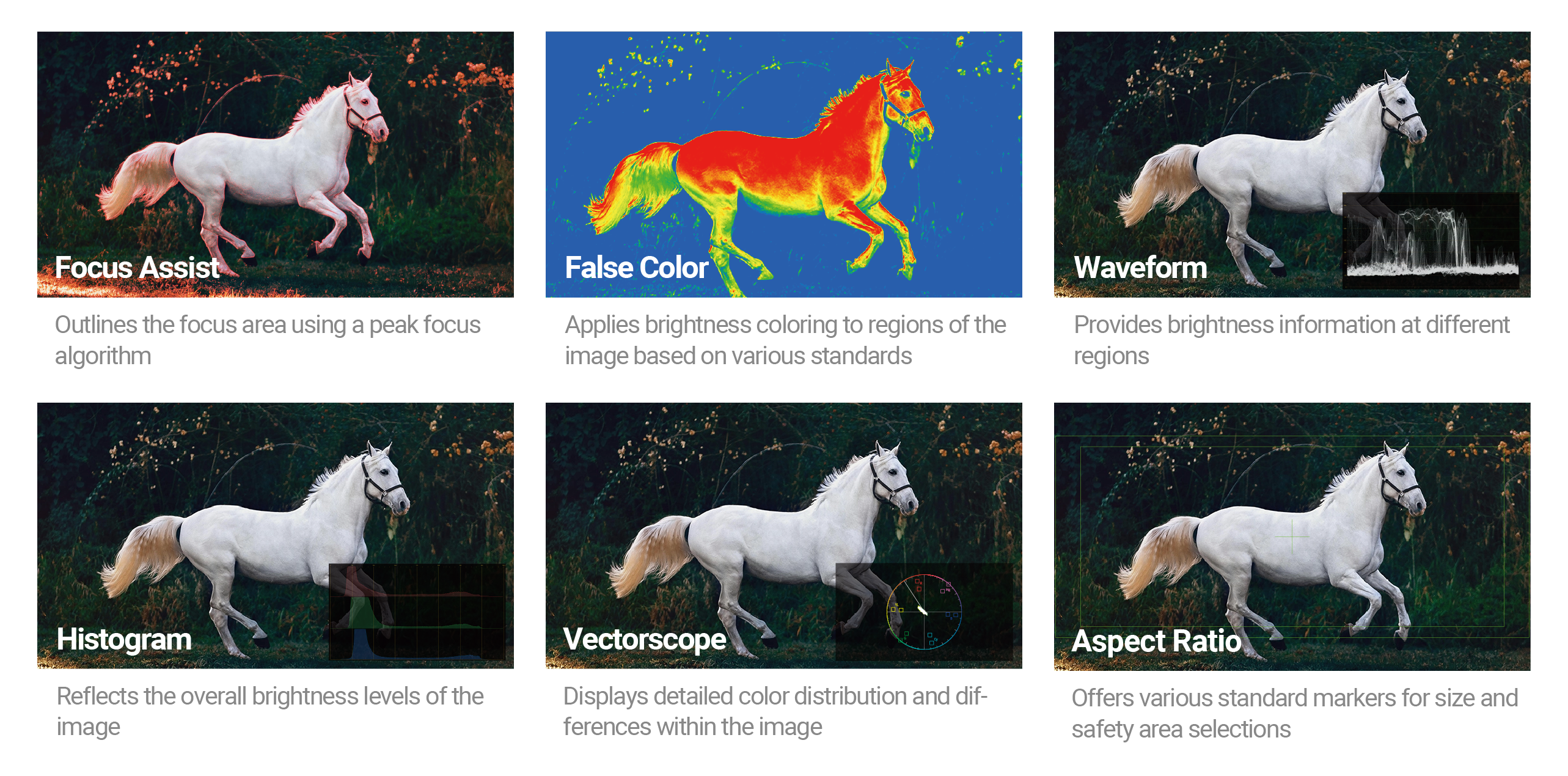

Professional Image Analysis Tools
Specifications
| Size | 5.5" | ||||
| Resolution | 1920×1080 | ||||
| Aspect Ratio | 16:9 | ||||
| Contrast Ratio | 1000:1 | ||||
| Viewing Angle | 160°(H) / 160°(V) | ||||
| Color Depth | 8bit 16.7M | ||||
| Brightness | 1700cd/㎡ | ||||
| Screen | IPS panel | ||||
