KUM-1710W

17" 4K HDR Monitor with 12G-SDI

KUM-1710W is a 17'' 4K HDR monitor with 2x12G-SDI inputs and outputs, compatible with 6G/3G/HD/SD-SDI signals. Supporting a variety of professional broadcasting features such as waveform, histogram, Darkness Check, making KUM-1710W a brilliant 17 inch monitor in 4K production workflow.



Highlights Product Descriptions Specifications

Highlights

- 3840 x 2160 4K resolution

- 12 Bit Video Processing, image no delay

- 2 x 12G-SDI inputs and outputs (6G/3G/HD/SD-SDI auto detect)

- 2 x 3G/HD/SD-SDI inputs and outputs

- 4K 12G-SDI single link signal, up to 4096 x 2160 60p

- 4K signal: 2 Sample Interleave (2SI), Square Division (SQD)

- 1 x SDI SFP+ module optical input cage

- 4K Mode, Quad-Split Mode, FHD single picture mode

- 4 x SDI Quad-View: mixed inputs & frequency rates

- Free Quad-View (boarder control/window adjustment)

- Payload ID display

- Color Space & EOTF Curves Auto Setting, matching(REC709/REC2020)

- Color Space (REC709/EBU/DCI-P3 D65/DCI-P3/REC2020/Bypass)

- HDR: PQ (ST2084), HLG (1.0, 1.1, 1.2, 1.3, 1.4, 1.5)

- Sony Camera Log Curves: Slog, Slog2, Slog3

- Canon Camera Log Curves: Clog, Clog2, Clog3

- ARRI Camera Log Curves: LogC

- Panasonic Camera Log Curves: Vlog, Vlog (softroll)

- Gamma (2.0, 2.2, 2.4, 2.6),HDR Area Display

- 4K HDR Waveform, Vector Scope, Marker/Box Control Function

- 3D LUT Color calibration with ColourSpace & CalMAN

- 3rd-party 3D LUT files import(USER1/USER2)

- S1-S8 Eight Selectable Scene Settings

- Picture Flip, Focus Assist, False Color, Zebra

- SDR and HDR comparison, Darkness Check

- Full Scan, Over Scan, Blue/Mono Only

- 16ch Embedded Audio Level Meters

- Dynamic and Static UMD/IMD Display (TSL3.1/4.0/5.0)

- 608/708 CC Closed Caption

- Key Lock, Video Freeze

- Firmware upgrade/LUT file import via USB/Ethernet

- GPI (selectable/markable windows)

- Aluminum Alloy Casing, Built-in Speaker

Product Descriptions

4K Signal, Native 4K Resolution


Native 4K resolution, 4K 12G-SDI single link supports utmost 4096 x 2160 60p format, 2 x 12G-SDI signal inputs and outputs (auto detected 6G/3G/HD/SD-SDI), 1xSDI SFP + module input cage.

65" 4K HDR Monitor with 12G-SDI




Motion-Adaptive Interlace to Progressive


Realizing quick response of the fast moving image, avoids duzzy, saw tooth and other problems, ensures clearer and smoother image, well-satisfied high-end demanding workflows such as live sports, camera shaking and rolling subtitles etc.

17"8K HDR Monitor




3D LUT Color Calibration


Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A probe(professional level) to achieve a precise color. Monitor's also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

32" 8K HDR monitor




2SI and SQD 4K/8K signal

27”8K HDR Monitor

4K/8K 2 Sample Interleave (2SI) :Pixel based segmentation

27”8K HDR Monitor

4K/8K Square Division (SQD) :Quadrant based segmentation

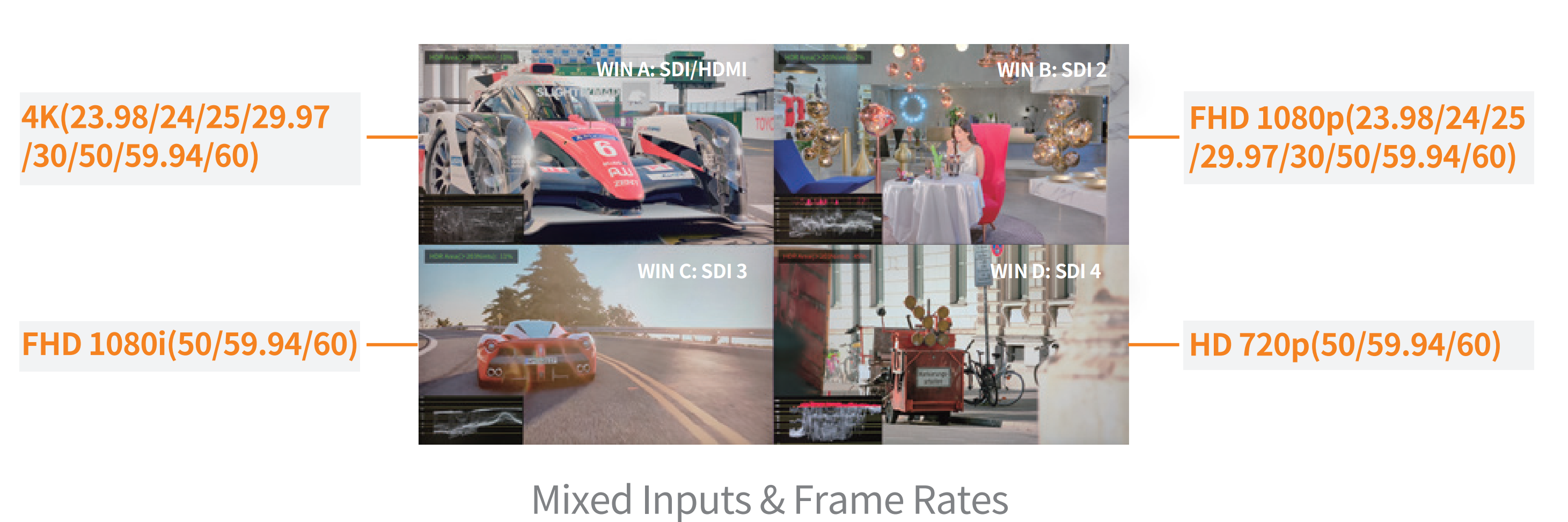

Free Quad View


Quad View Mode support mixed inputs & frequency rates. Each window can change to single picture mode with shortcut button or GPI. Each windows can select different color space and HDR waveform.  17" 4K HDR Monitor with 12G-SDI




EOTF Curve Conversions


Konvision KUM 4K,8K and KVM-6X series supports a variety of EOTF curve conversion applicable to the broadcast industry and digital film standard. A preset of lots of HDR log, SDR logs and gamma curve selection, so as to realize the perfect combination with the camera system.

31” 4K HDR P3 OLED Master Monitor




4K BOX Control


The BOX Control function can flexibly set the height and width of the marker frame on the monitor, and can be adjusted up, down, left and right. Users can flexibly adjust according to the frame ratio, which brings great convenience to program production.

31” 4K HDR P3 OLED Master Monitor




Darkness Check


Increasing the brightness and contrast ratio in the dark areas, Darkness Check can show more shadow details of the input signal. Darkness Check can be used for double checking the shadow detail of the dark areas to avoid any missing infomation.

32" 8K HDR monitor




HDR Waveform, HDR Area Display


HDR reference white is 203nits. The part that exceeds the reference white level (203nits) considered as the HDR highlight part, and the HDR highlight ratio should not exceed 20% of the entire image. HDR waveform, HDR area display can make the HDR info more intuitively displayed, which is more convenient for users.

17"8K HDR Monitor




High Dynamic Range(HDR)


Konvision KUM 4K, 8K and KVM-6X series support HDR display. Adjustable HDR modes include PQ(ST2084), HLG with Rec 2020 color gamut. It reproduces a greater dynamic range of luminosity and provides extremely high level picture quality.


17"8K HDR Monitor




4K HDR Waveform (Alarm), Vectors


4K HDR Waveform. SDI supports Waveform, Vectorscope, Histogram. When luminance reaches or exceeds the preset value, the over exposure areas will be red marked (Waveform Alarm).


27”8K HDR Monitor




False Color


Check exposure of the image.Blue, cyan, green, yellow, orange and red color be displayed in turn to show the luminance or brightness values of the image from darkest to brightest, enables an achievement of proper exposure without applying external test equipment.

17"8K HDR Monitor




Focus Assist


Focus assist aids the camera operator in obtaining the sharpest possible picture, it will mark with red color where the sharp edges appear on the screen.

17"8K HDR Monitor




Zebra


Display the overexposed areas(too bright) of the image with zebra stripes, aids the camera operator to control the luminance, in order to avoid overexposure. This feature is very effective for proper exposure.

17"8K HDR Monitor

Specifications

Panel
Display Size17.3"
Resolution3840×2160
Aspect Ratio16:9
Viewing Angle178°(H) / 178°(V)
Color Depth16.7M
Back LightLED
Brightness400cd/m2
Contrast Ratio1500:1


INPUT
OUTPUT
CONPATIBLE SDI FORMATS
Audio In / Out
GENERAL
