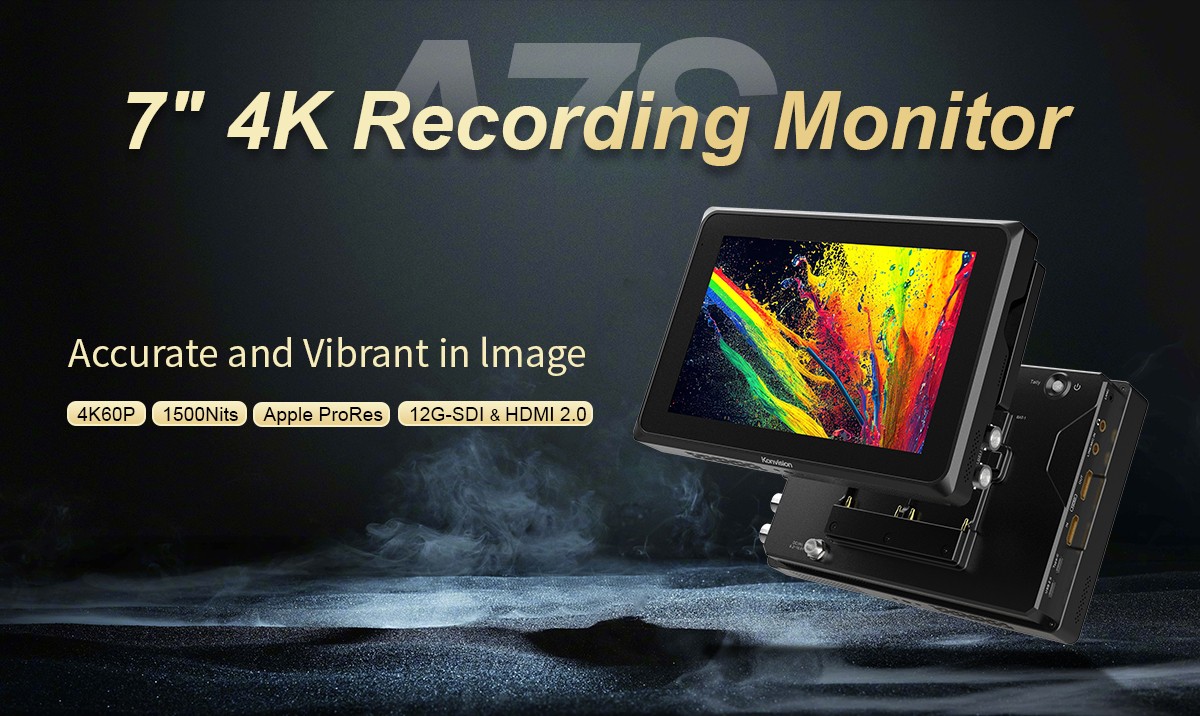

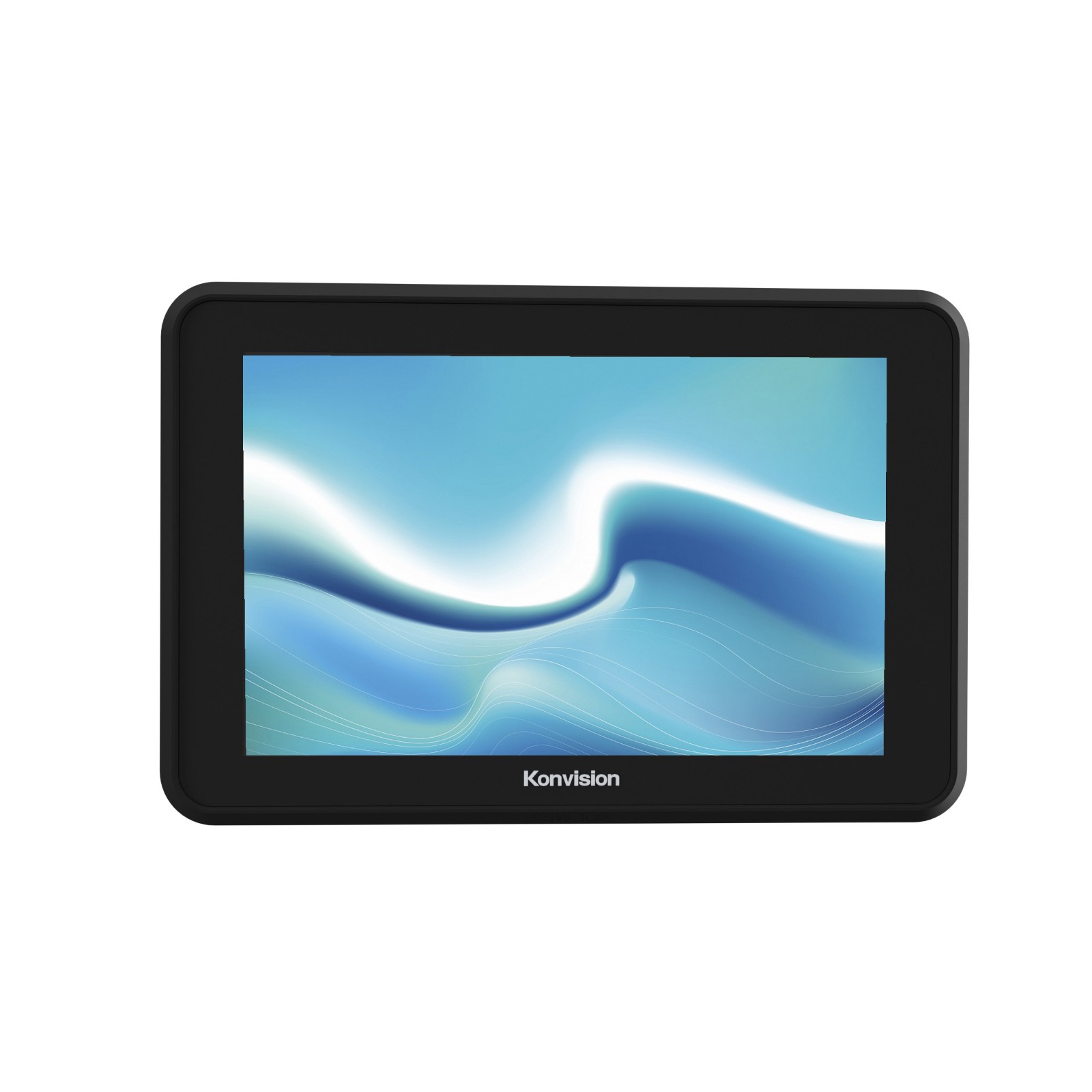

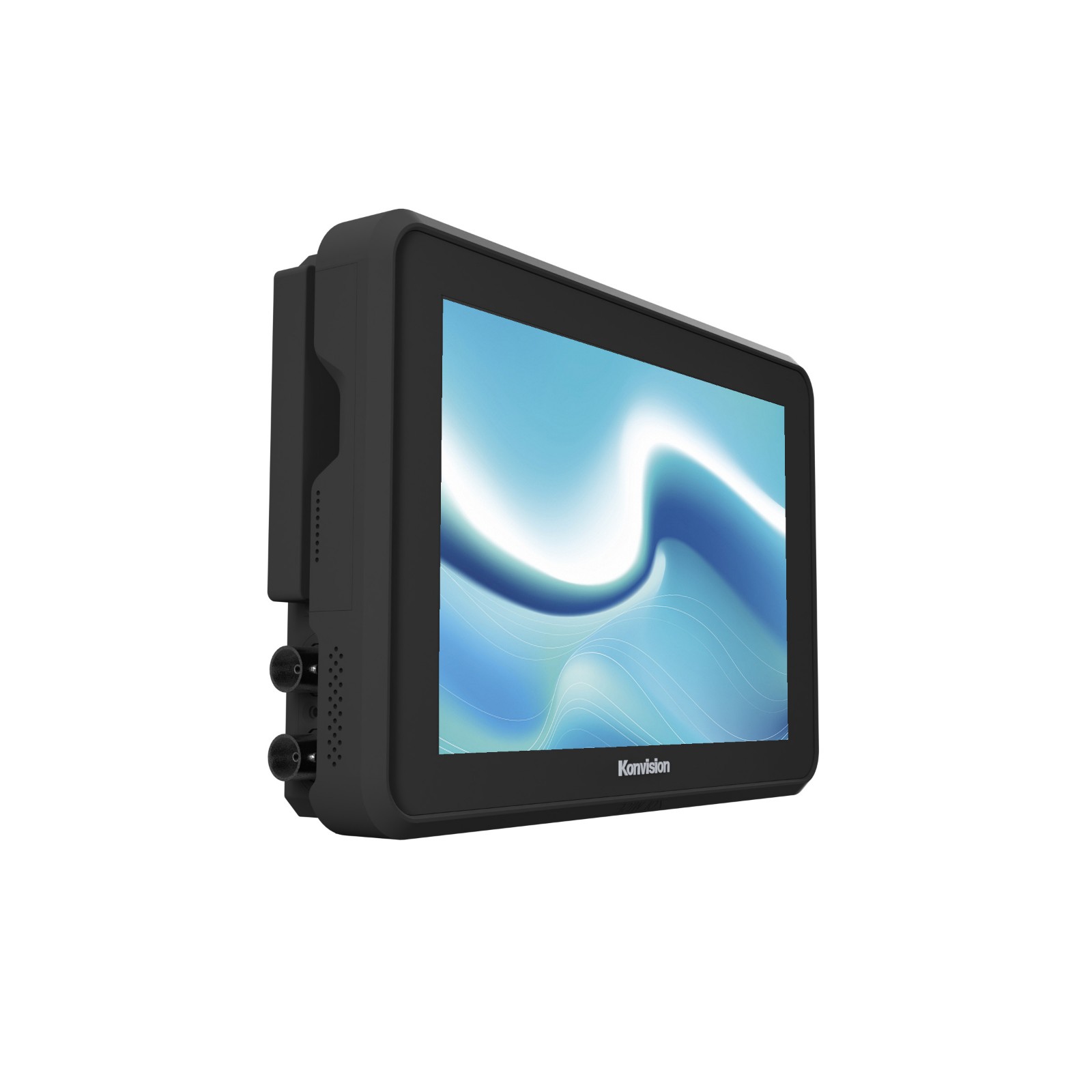

A7S

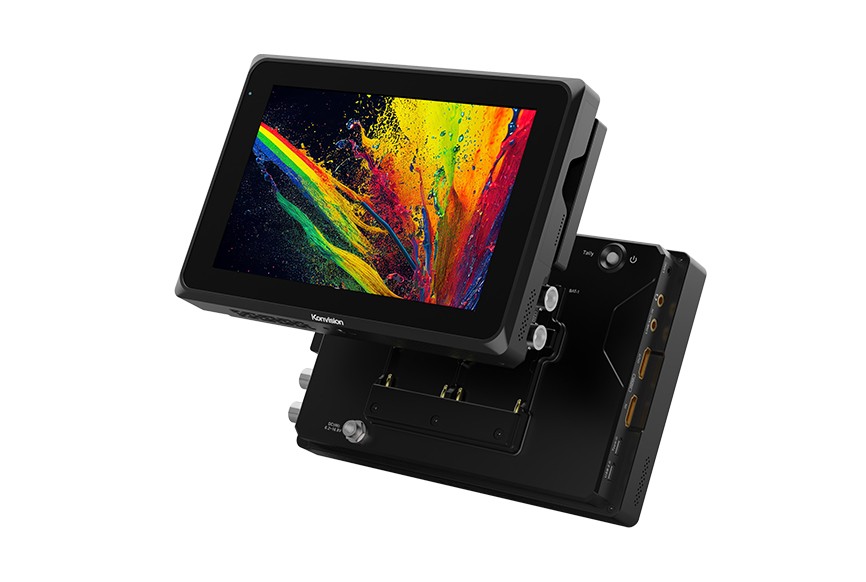

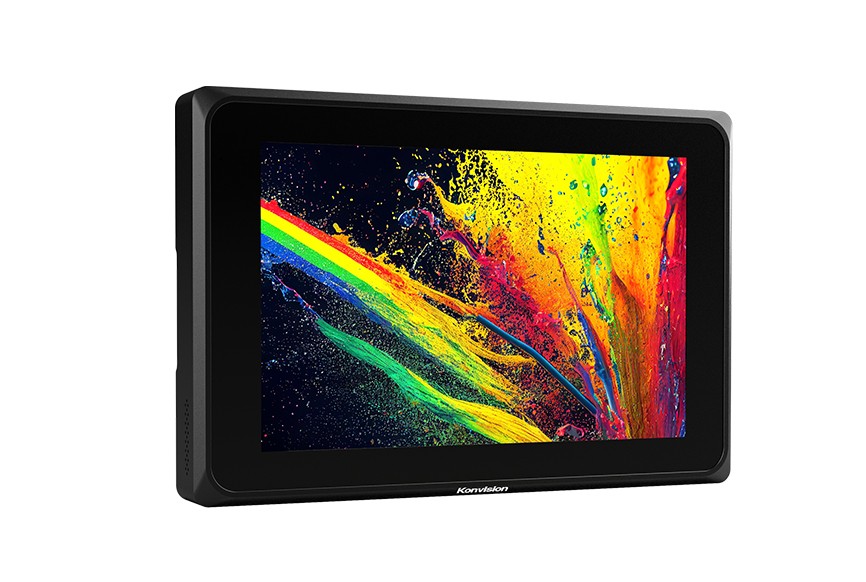

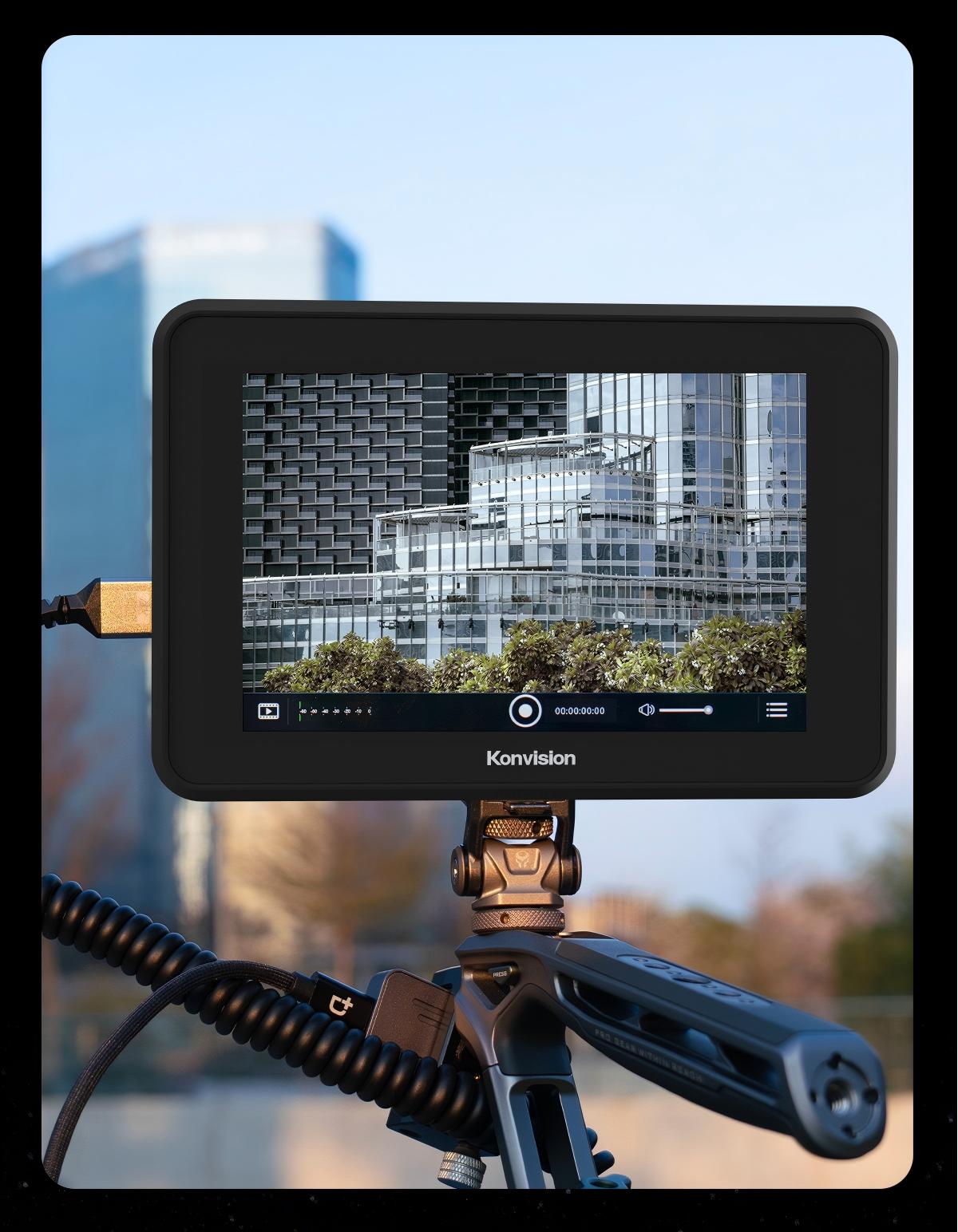

7" 4K60p Recording Monitor

The 7" 4K 12G-SDI recording monitor A7S owns a peak brightness of 1500nits, supporting recording, monitoring and playback functions.Supports HDMI and SDI interconversion, 4K to HD conversion.Equipped with waveform, false color and other features, makes it a nice choice for shooting and other production workflows.


Highlights Product Descriptions Specifications

Highlights

- 7 inch 1920x1200 resolution

- 1 x 12G/6G/3G/HD/SD-SDI input or 2 x 12G/6G/3G/HD-SDI outputs

- 1 x HDMI 2.0 input & 1 x HDMI 2.0 output

- 4K to HD conversion. Support recording/playback/monitoring/markers function

- Recording Format: Apple ProRes (422HQ,422,LT,Proxy)

- Support full list review or custom playlist review

- Support frame-by-frame, fast play, slow play, loop play etc operation

- Support Pre-roll Record HD 10s, 4K 2s, time-lapse photography

- Support pulldown record

- Support ExFAT file system, customizable recording file names

- Support different color space, EOTF selection

- Support user 3D LUT files import

- Support dual batteries, voltage 7.4V, hot swap

- Waveform, False Color, Focus Assist, Zebra

- Aspect Ratio, Safe & Area Market, Time code, Video Freeze, Picture Flip

- 3.5mm headset jack, Tally Indicator(Back)

- Aluminum Alloy Casing

- DC 12V Power Supply

- During shooting or playback, the system supports marking fragments at specific times, with the ability to output to disk in XML format


Product Descriptions

A7S 7" 4K  Recording Monitor
A7S 7" 4K Recording Monitor

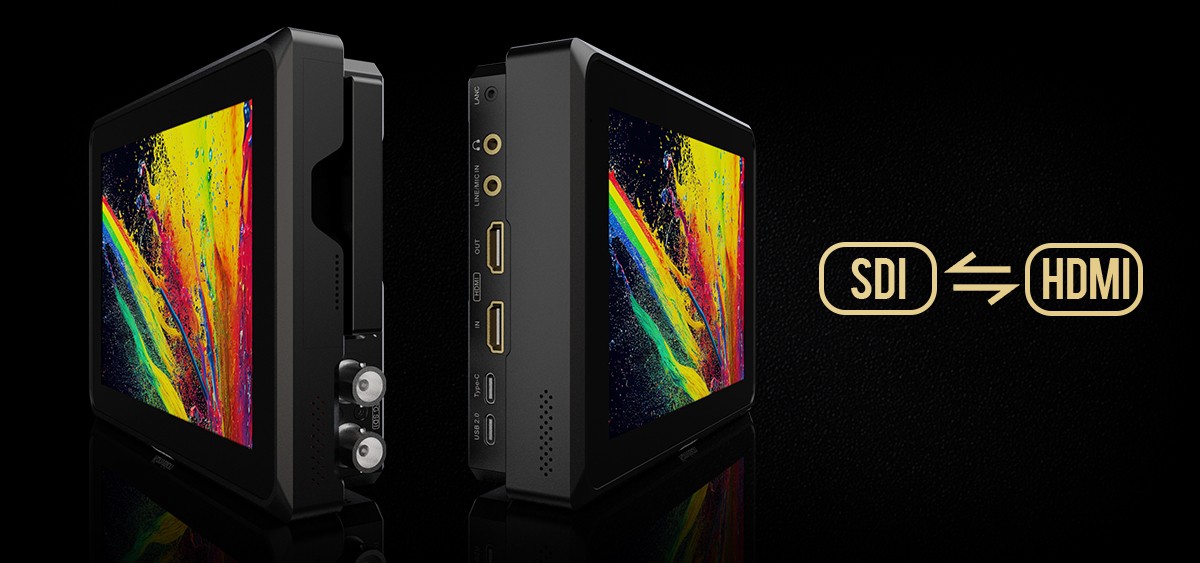

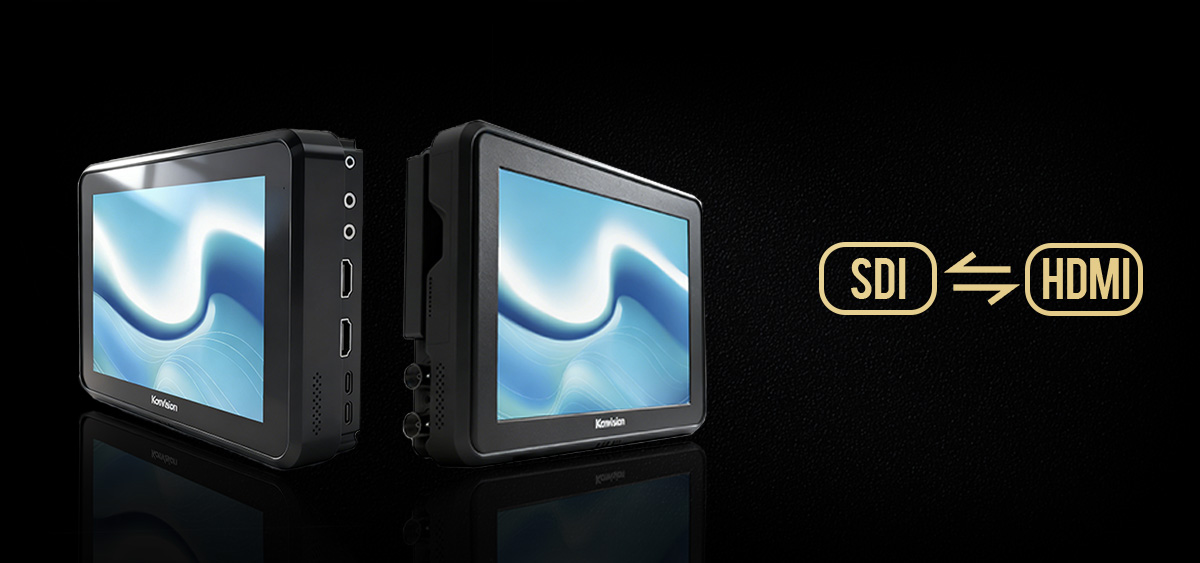

12G-SDI & HDMI2.0 Cross Conversion

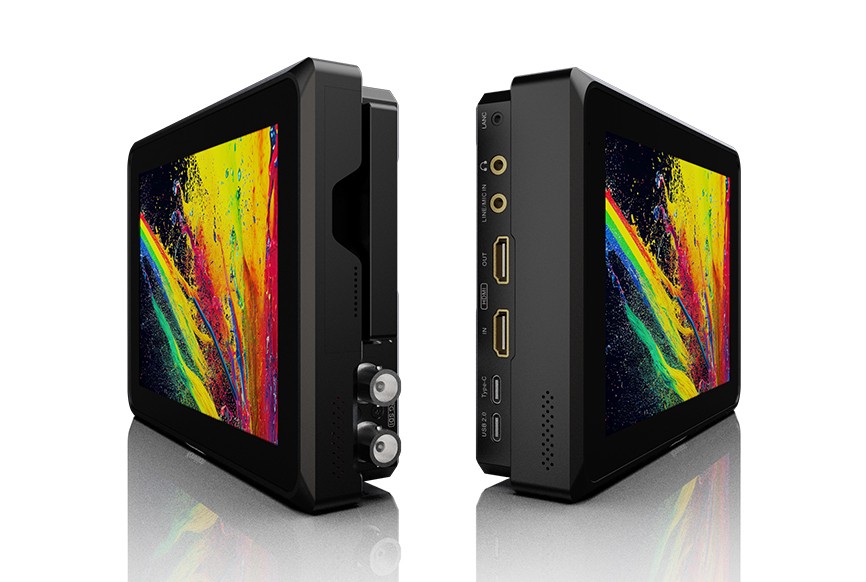

Professional Interfaces

The A7S can record up to 4K60P 10-bit signals, equipped with 12G-SDI and HDMI2.0 input/output cross conversion, supporting up to 4K60P.

A7S 7" 4K  Recording Monitor


Supports Apple ProRes Recording


Professional Recording Formats

Apple ProRes Formats are widely utilized in post-production as it is able to deliver high-quality, low-compression video with flexible adjustability. Moreover, Apple ProRes is renowned for its smooth compatibility, enabling efficient playback and editing across multiple platforms and post-production software.

A7S 7" 4K  Recording Monitor


HDR 10-bit High Brightness Panel


Professional Color Calibration for Accurate Color Reproduction

To achieve the most accurate color reproduction, Konvision utilizes 3D LUT color calibration technology, coupled with professional color calibration instruments such as K10-A and CR300, to provide users with comprehensive color management services.

7" 4K60p Recording Monitor

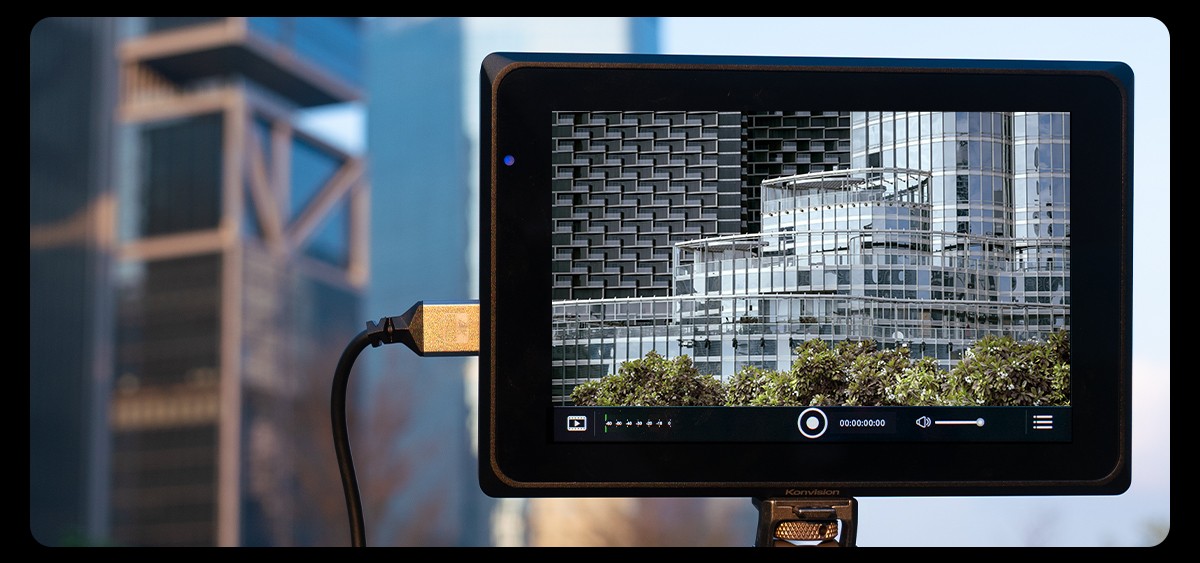

Clear Display in Outdoor Shootings


1500Nits Peak Brightness

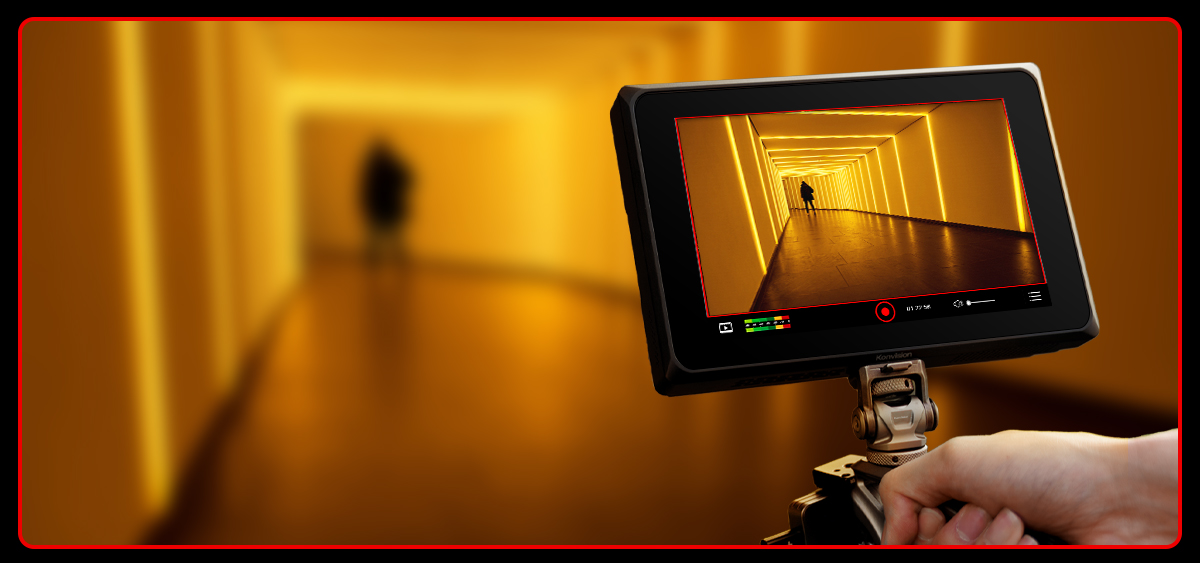

With a peak brightness of 1500Nits, it presents perfect performance even in outdoor shootings. It comes with multiple camera log curves, ensuring more accurate HDR monitoring.

A7S 7" 4K  Recording Monitor


Auxiliary Monitoring Functions


Multiple Professional Auxiliary Monitoring Functions

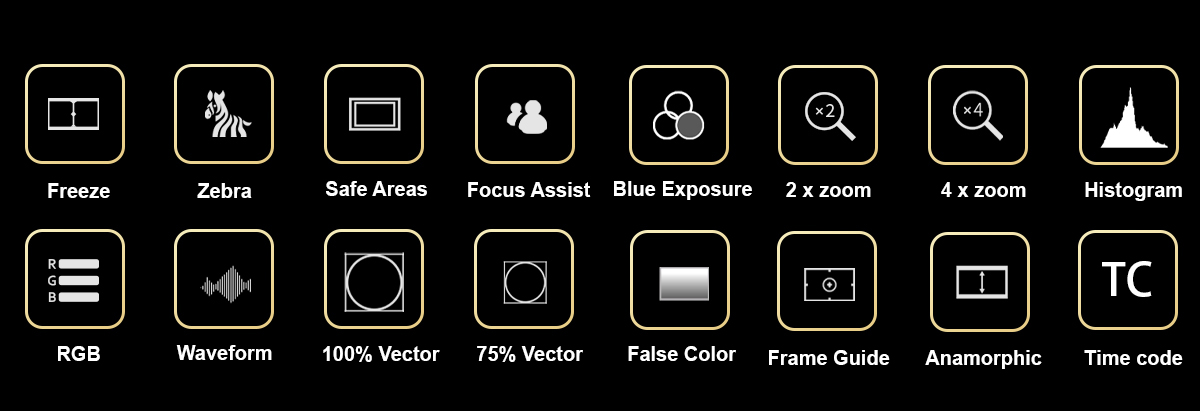

Equipped with waveform(Luma/RGB/YCbCr), Vectorscope(100%/75%), Focus Assist, Zebra, False Color, Blue Exposure, Zoom×2, Zoom×4, Frame Guide, Safe Areas, Anamorphic desqueeze, Freeze and more.

7" 4K60p Recording Monitor

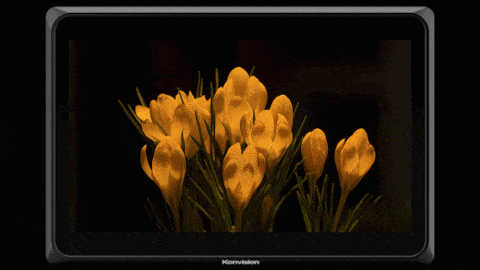

Time-lapse Photography


Streamline Your Workflow

Setup time-lapse parameters independently from the camera controls and record through the A7S, it makes your creation easily. Utilizing the A7S for monitoring, framing, and exposure adjustments, it owns larger storage capacity and extended battery life for prolonged projects, streamlining your workflow and enhancing productivity.

A7S 7" 4K  Recording Monitor


Recording, Keep Your Moments


Multiple Power Supply Options

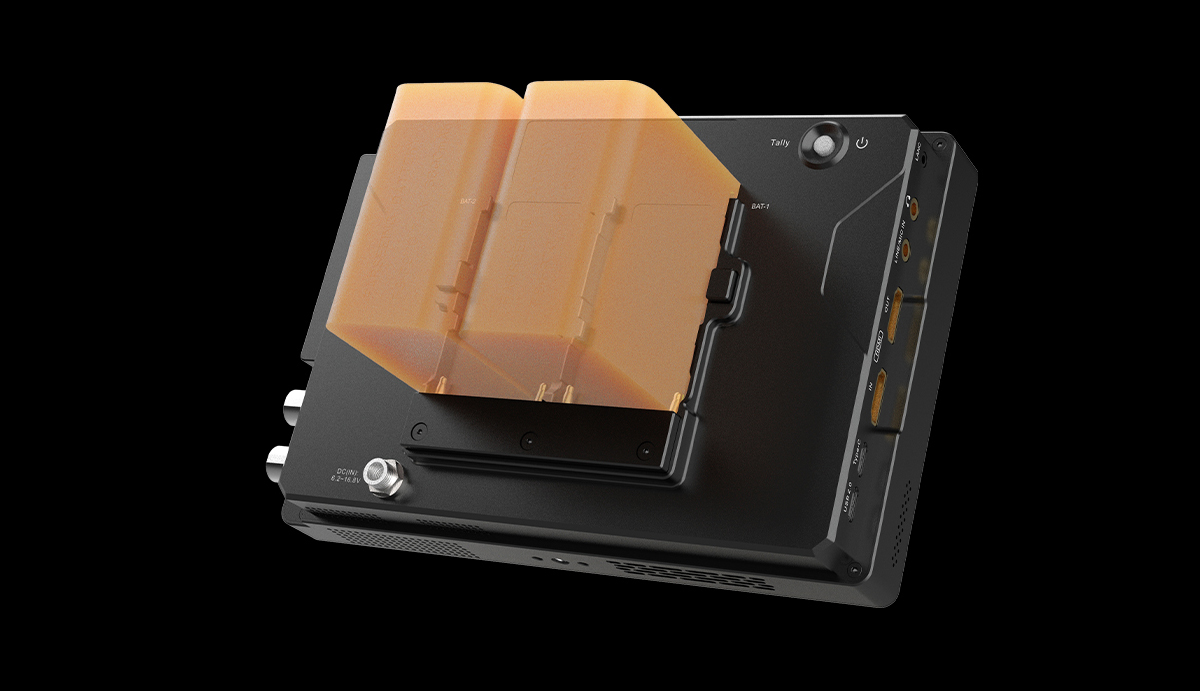

Supports Dual NP-F Batteries and DC Power Supply, Hot-Swappable for Continuous Operation, Seamless Recording and Monitoring.

A7S 7" 4K  Recording Monitor

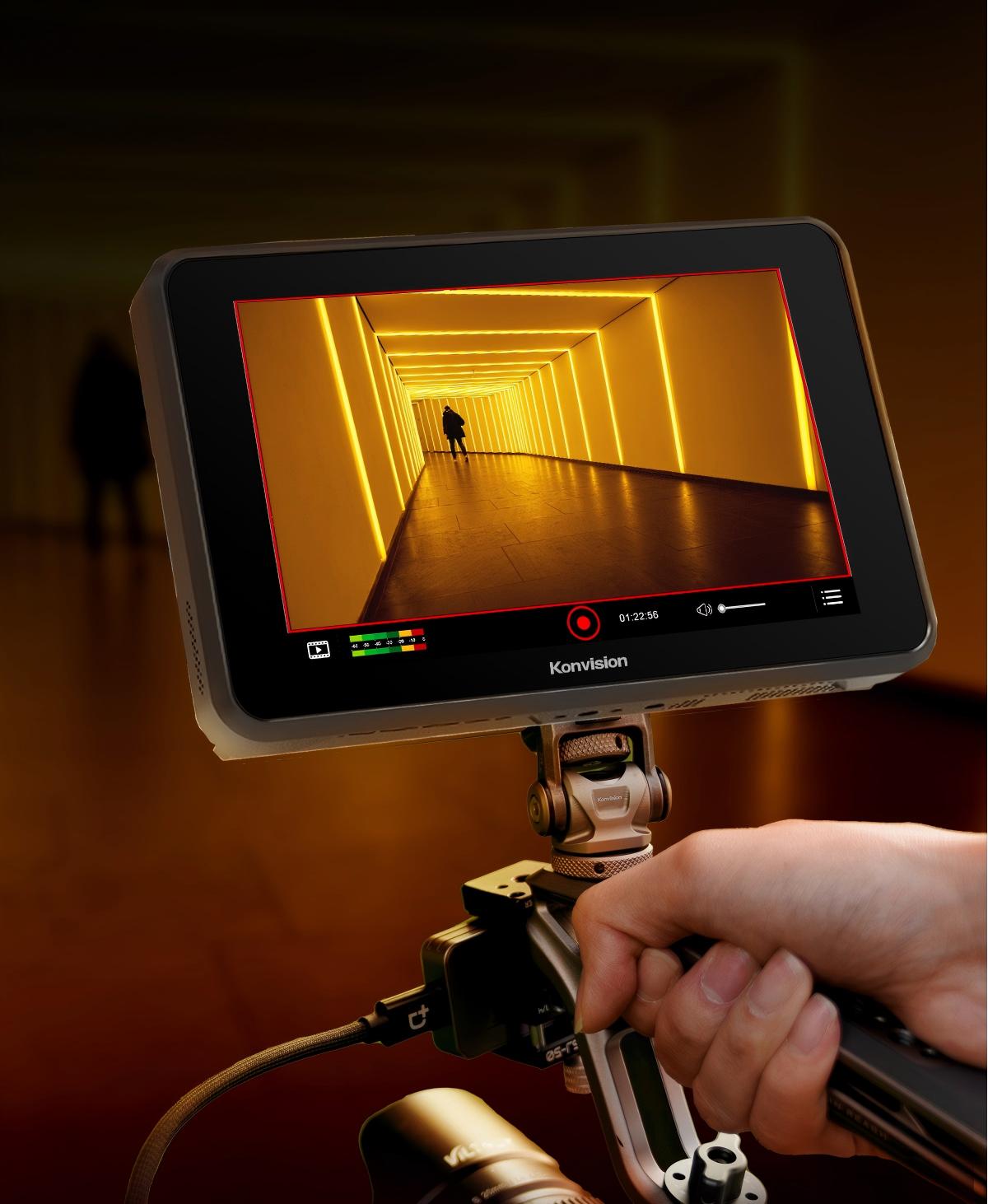

Clear UI, Easy to Use


User-friendly UI Design

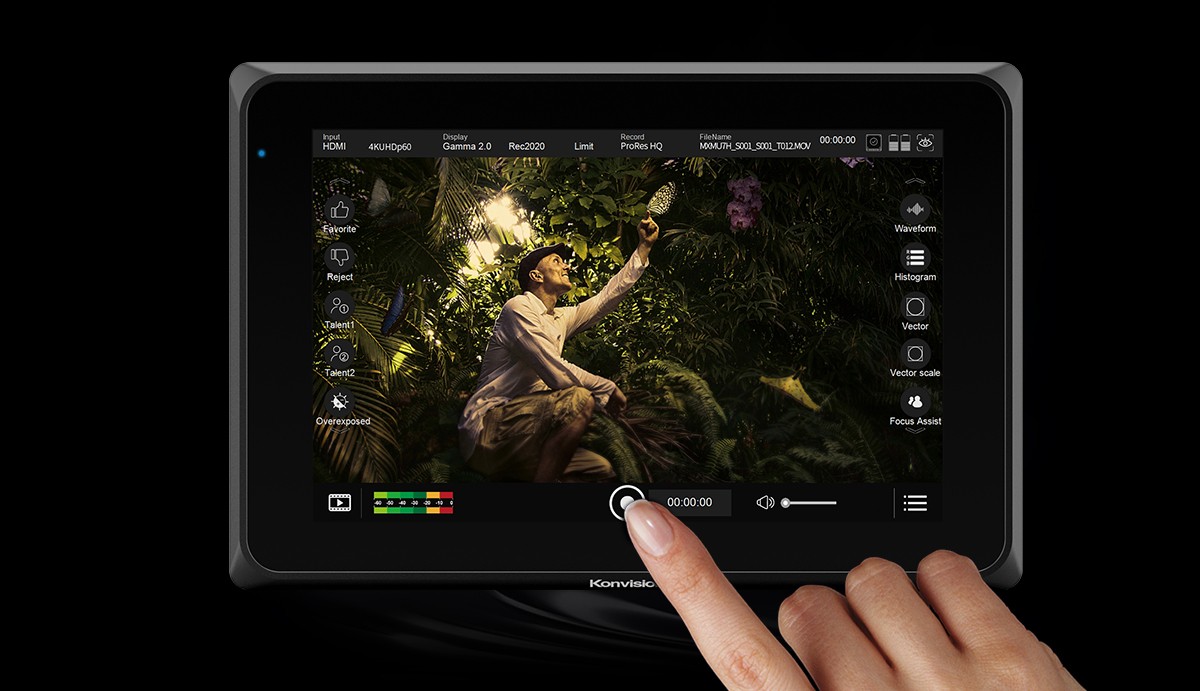

Konvision touch UI is tailored to user habits, boasting a sleek design for easy identification and seamless operation. Customize shortcut keys to streamline your personalized operational interface.

A7S 7" 4K  Recording Monitor


Lossless Recording


Efficient And Economical Storage Solution

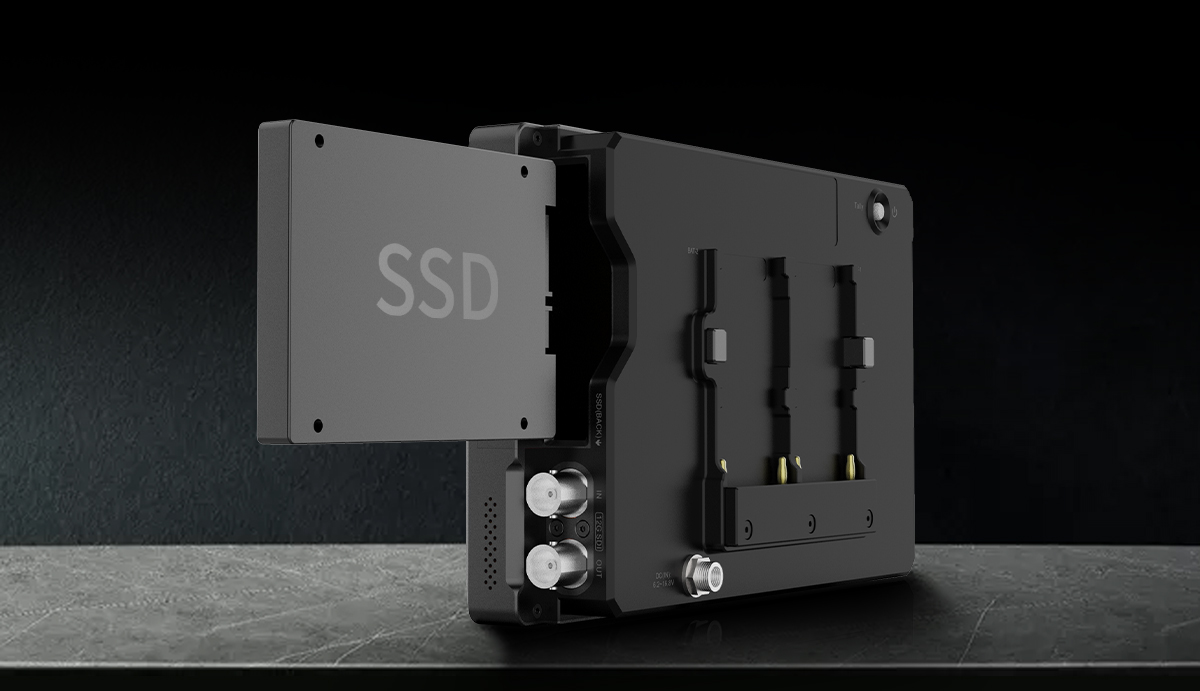

It allows directly capture upto 4K60P Log signals from the camera sensor, and encode them into easily editable Apple ProRes formats for storage on cost-effective, high-capacity standard SSD drives.

A7S 7" 4K  Recording Monitor



Specifications

Panel
Size7"
Resolution1920×1200
Aspect Ratio16:10
Contrast Ratio1200:1
Viewing Angle160°(H) / 160°(V)
Color Depth1.07B
Brightness1500cd/㎡
ScreenIPS panel



INPUT
OUTPUT
CONPATIBLE SDI FORMATS
Audio In / Out
GENERAL
