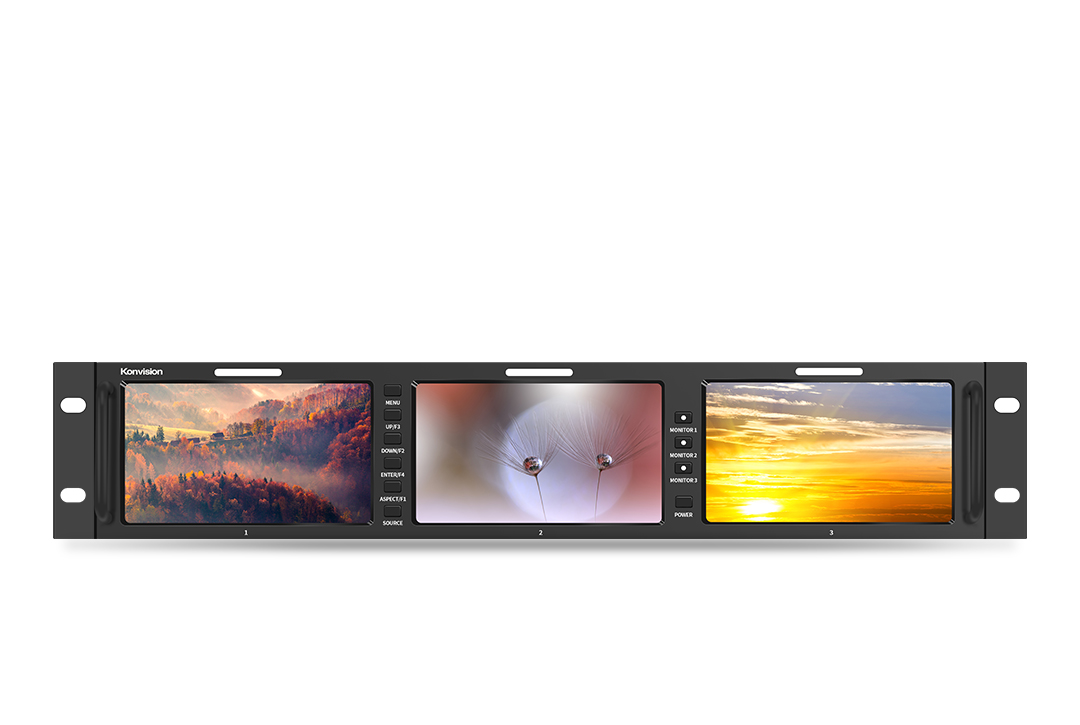

KRM-503A, 3x5.5" triple rack-mount monitor, IPS LCD panelswith full HD 1920x1080 resolution, wide viewing angle. Supporting full screen waveform, vectorscope and audio meter display, special 2RU compact design makes it suitable for OB trucks and studios.
Highlights
- 1920 x 1080 FHD resolution, IPS LCD panel
- 1x3G/HD-SDI in and out for each screen
- Composite Video input
- Waveform, Vector scope
- Markers, Time Code
- Audio Meter
- Dynamic UMD TSL3.1/4.0
- Nice Aluminum Alloy Casing
- Scan, Blue Only/Mono
- Tally
Product Descriptions
3D LUT Color Calibration
Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A probe(professional level) to achieve a precise color. Monitor's also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.
Waveform(Alarm),Vectors
SDI supports Waveform, Vectorscope, Histogram and manage to be displayed on screen at the same time.When luminance reaches or exceeds the preset value, the over exposure areas will be red marked(Waveform Alarm).

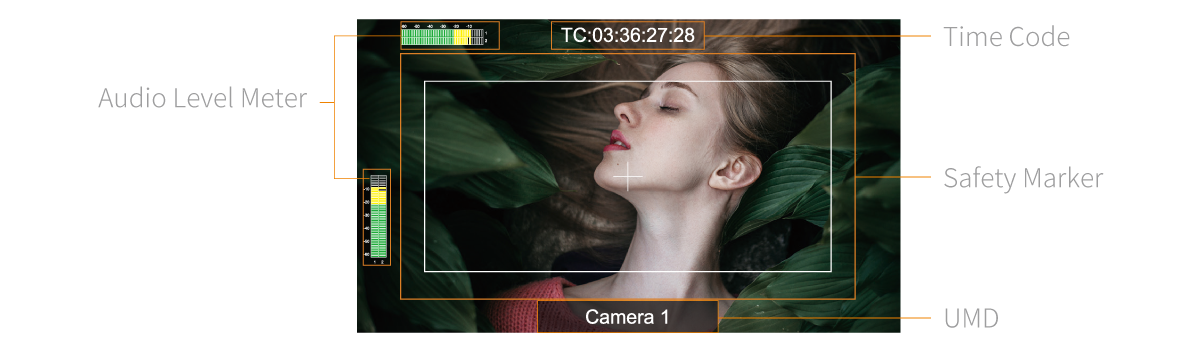

Various Markers
CC(Closed Caption), Markers, UMD, Audio Meter, Time Code.
Specifications
| Model No. | KRM-503A |
| Display Size | 3 x 5.5" |
| Resolution | 1920×1080 |
| Aspect Ratio | 16:9 |
| Wide Viewing Angle | 170°(H) / 170°(V) |
| Pixel Pitch | 0.021×0.063(mm) |
| Back Light | LED |
| Color Depth | 16.7M |
| Brightness | 400cd/m2 |
| Contrast Ratio | 1000:1 |
