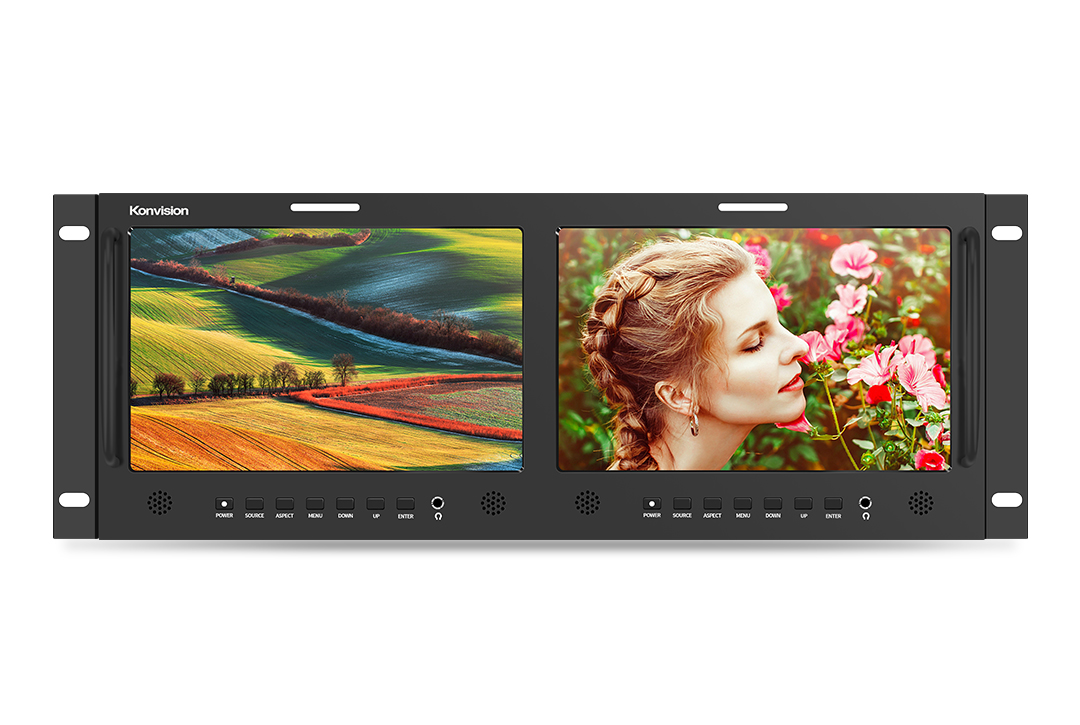

KRM-902A (2x9")

2 x 9" 3G-SDI FHD Dual Rack LCD Monitor

KRM-902A, 2x9" 4RU dual rack-mount monitor, IPS LCD panels with FHD 1920x1200 resolution, wide viewing angle. 3D LUT color calibrated,support waveform, vectorscope and audio meter display makes it suitable for OB trucks and studios.


Highlights Product Descriptions Specifications

Highlights

- 1920 x 1200 FHD resolution, IPS LCD panel

- 12Bit video processing

- 3D LUT color calibrated

- 1x3G/HD-SDI and out for each screen

- Composite Video input

- Waveform, Vector scope

- Markers Time Code

- Scan. Blue Only/Mono

- Audio Mete, UMD

- Built-in DC in and AC in

- Ethernet

- Tally

Product Descriptions

3D LUT Color Calibration


Compatible with ColourSpace and Calman calibration software, Konvision monitors apply K10-A probe(professional level) to achieve a precise color. Monitor's also workable with universal colorimeters including CA210, CA310, CS200, CR100, CR250, X-Rite i1 Display.

32" 8K HDR monitor





Waveform(Alarm),Vectors


SDI supports Waveform, Vectorscope, Histogram and manage to be displayed on screen at the same time.When luminance reaches or exceeds the preset value, the over exposure areas will be red marked(Waveform Alarm).

17"8K HDR Monitor




Various Markers


CC(Closed Caption),  Markers, UMD, Audio Meter, Time Code.

2 x 9" 3G-SDI FHD Dual Rack LCD Monitor


Specifications

Panel
Model No.KRM-902A
Display Size2 x 9"
Resolution1920×1200
Aspect Ratio16:10
Viewing Angle170°(H) / 170°(V)
Pixel Pitch0.033×0.099(mm)
Color Depth16.7M
Back LightLED
Brightness500cd/m2
Contrast Ratio800:1
Life Time≥50,000 hours
INPUT
OUTPUT
CONPATIBLE SDI FORMATS
Audio In / Out
GENERAL
