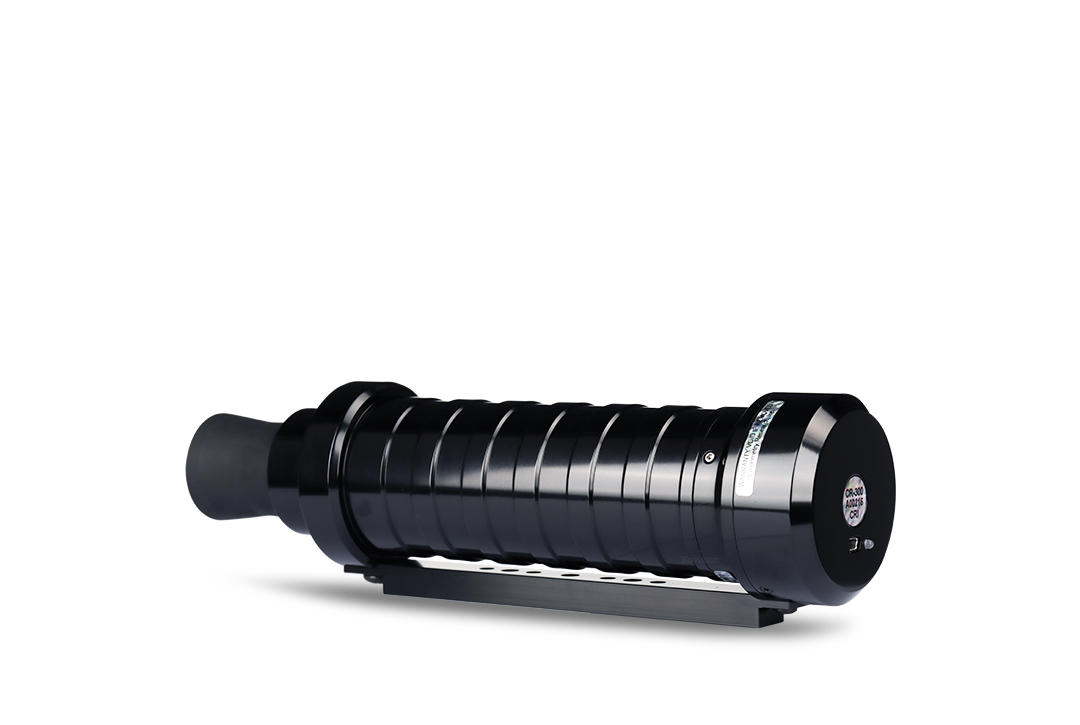

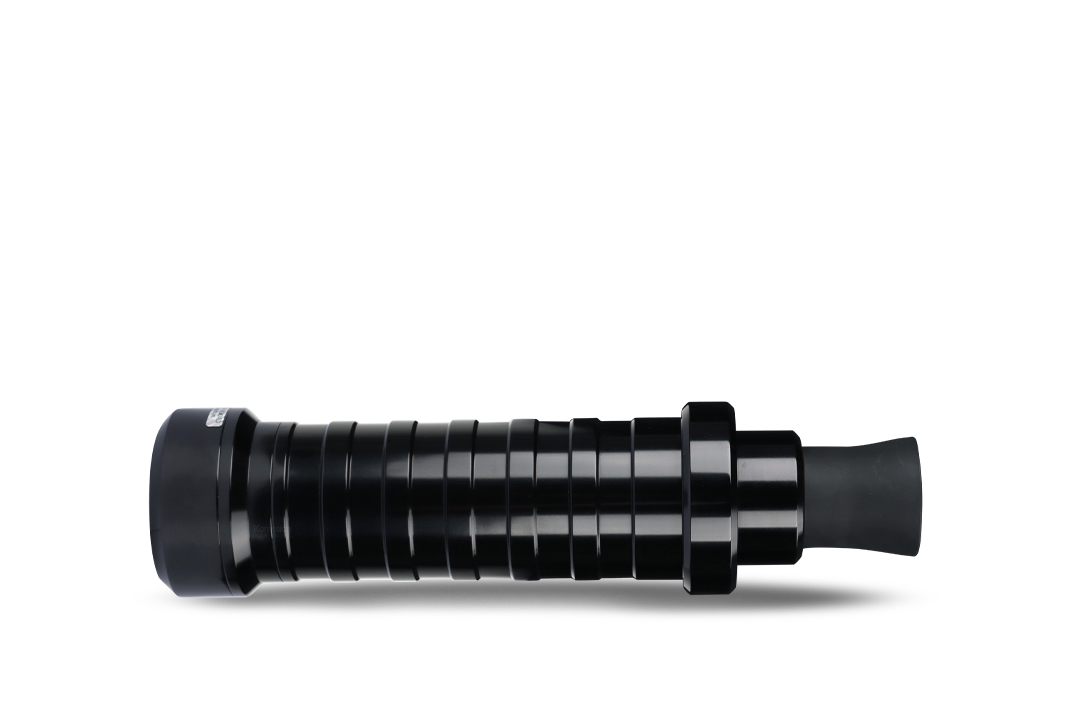

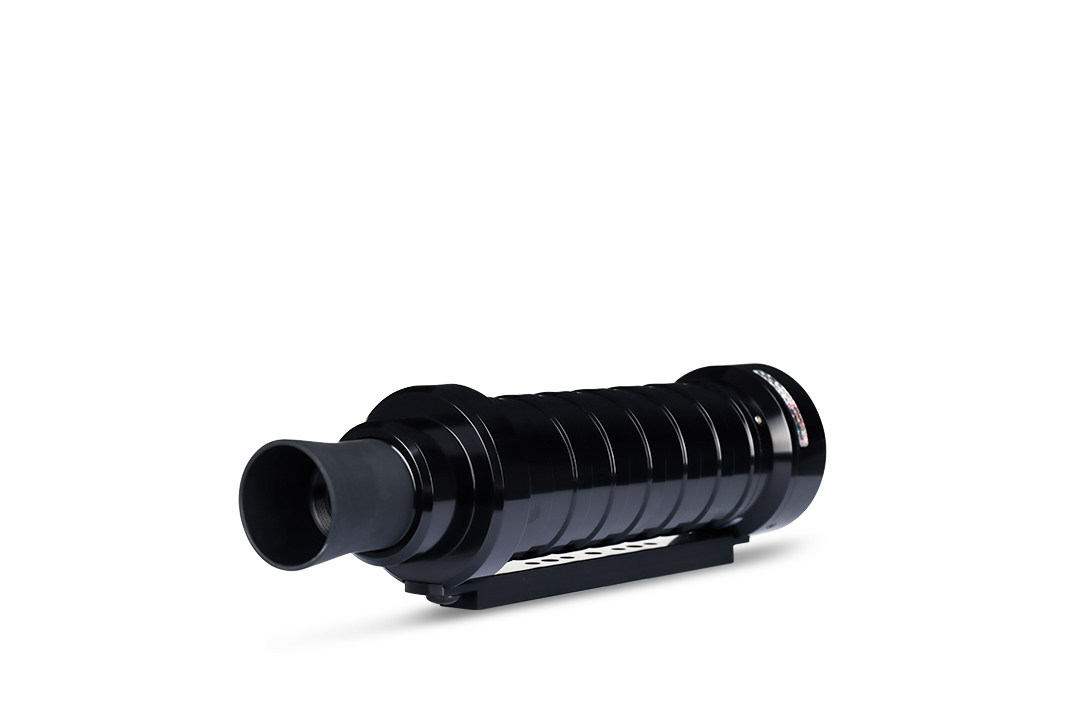

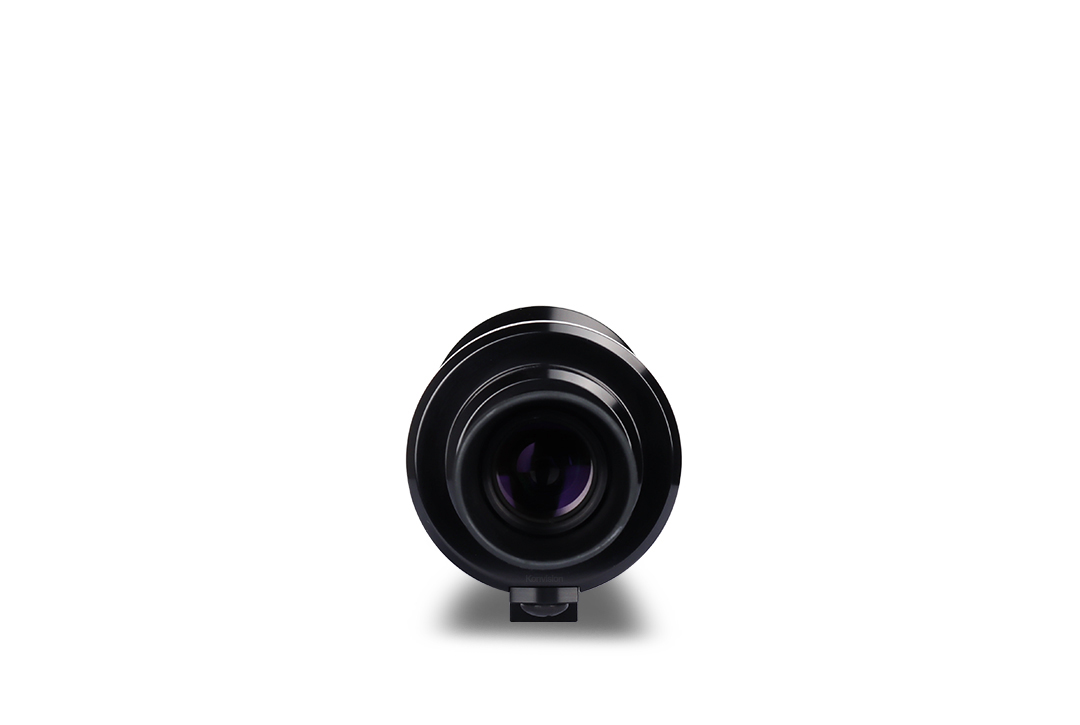

Colorimetry Research CR-300-RH,high quality chroma meter. High resolution,applies all-metal aluminum and stainless steel structure ensures an excellent durability,compact and 1.134kg light weight design.Spectral bandwidth 2nm, resolution 0.8nm/pixel,compatible with color management softwares such as Lightspace and Calman.
Highlights
- Sensor:CMOS image sensor,512 resolution
- Spectral range:380 – 780 nm
- Spectral bandwidth:2.0 nm
- Spectral Accuracy:±0.3 nm
- Spectral Resolution:0.8 nm /resolution
- Brightness range:0.17cd/㎡ - 154,000cd/㎡(0.05 fL-45000 fL)≠
- Brightness Accuracy:±2%Ω
- Brightness Repeatability≤1%Ω
- Chroma Accuracy:±0.0015 x,yΩ
- Chroma Repeatability:0.0005 x,yΩ
- Polarization Error:≤0.5%
- Digital Resolution:16 Bits
- Optics:Direct observation and measurement system
- Objective Lens:40mm
- Focus Range:200 mm to infinity
- Aperture:Fixed(Optional 3°,2°,1°,0.5°,0.25°,0.125°)
- Viewing Angle:10°
- Observation Optics:Patent-pending for movable and rotatable view system
- Custom Sync:10 – 10000 Hz
- Exposure Time Range:0.04 - 30s
- Voltage:5V/120 mA(600 mW)via USB 2.0
- Interface:USB 2.0
- Weight:2.5 oz.(1.134 kg)
Specifications
