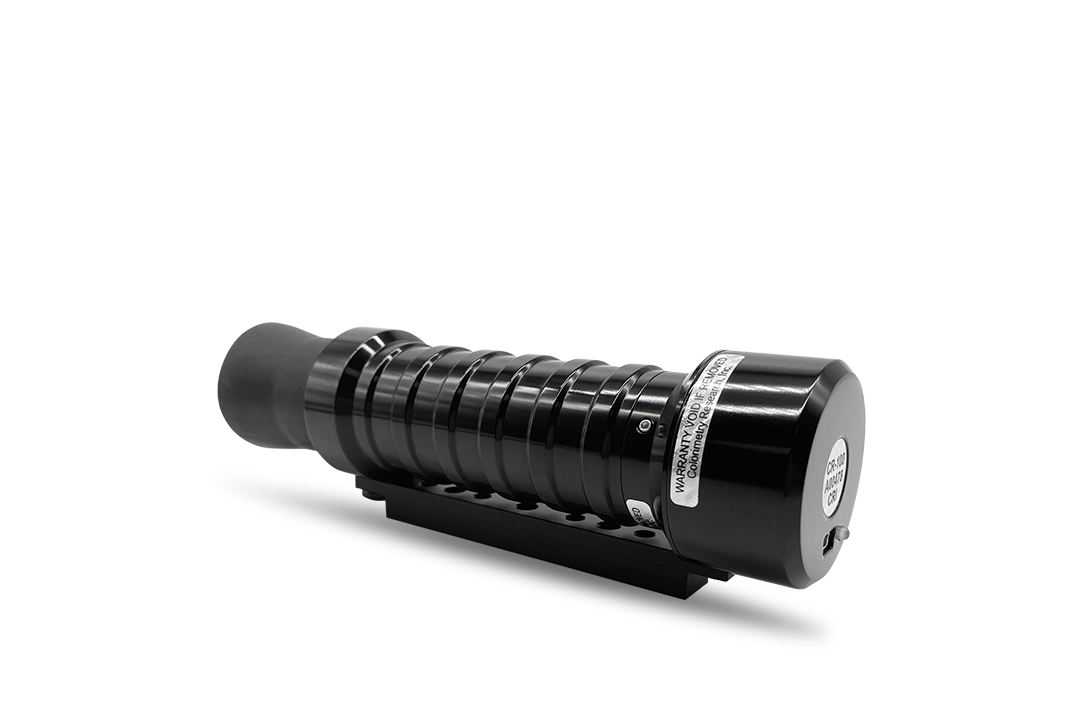

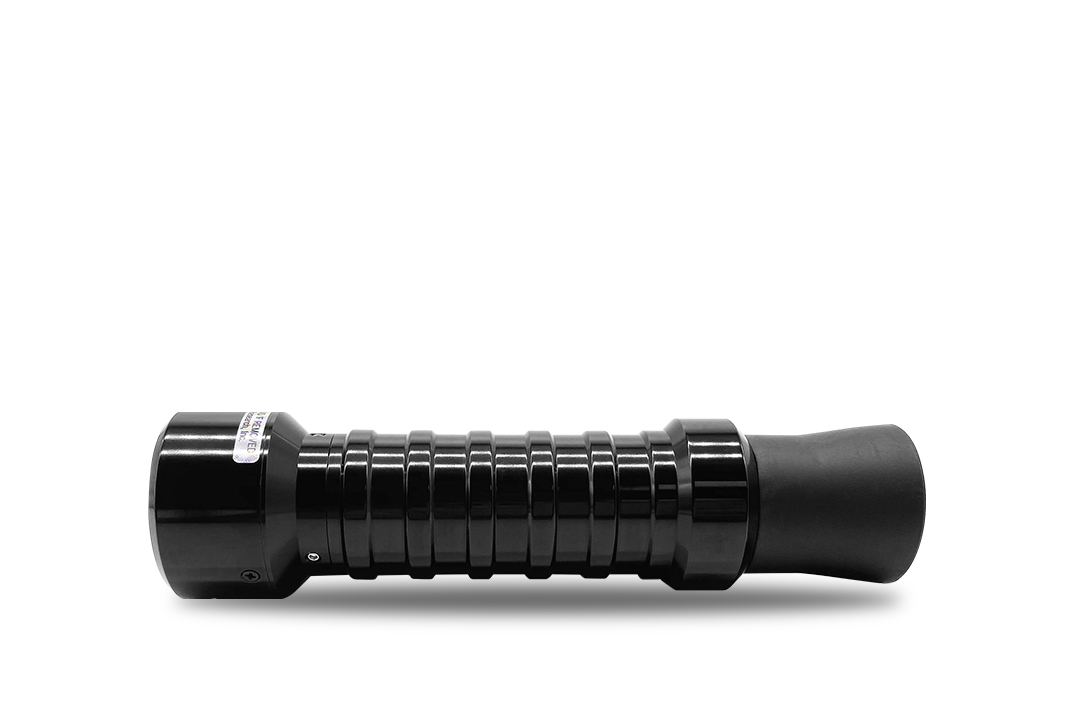

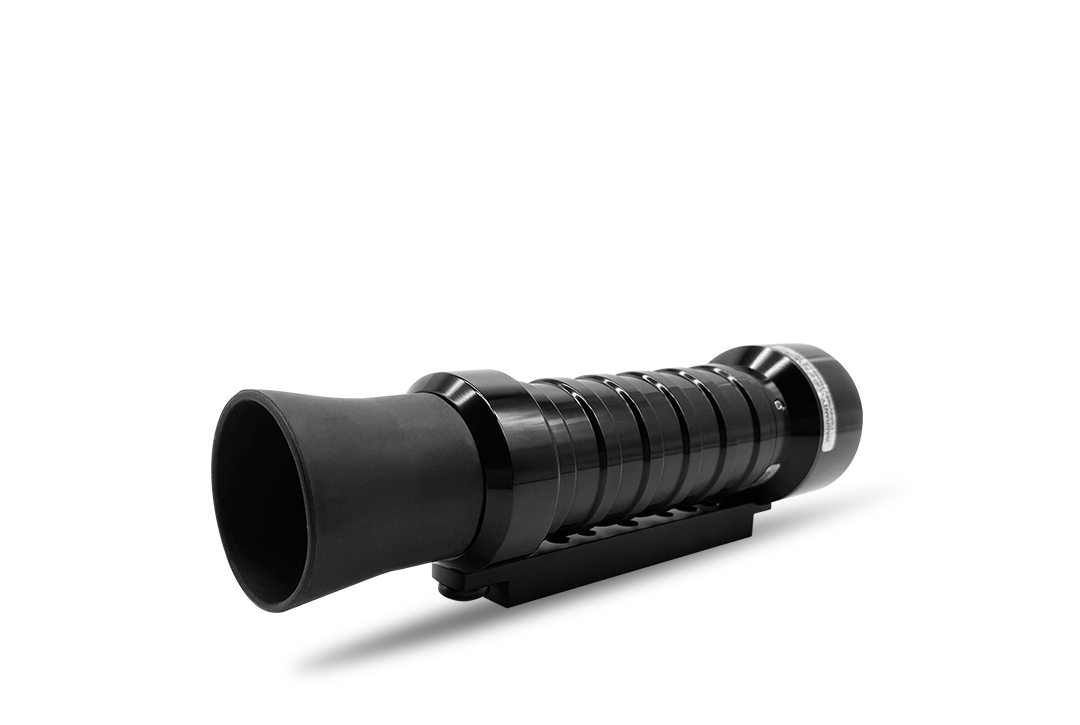

CR-100 Chroma Meter

Color Calibration Equipment

Colorimetry Research CR-100,high quality chroma meter. CR-100 applies all-metal aluminum and stainless steel structure ensures an excellent durability,compact and only 340 grams lightweight design.Using tri-color stimulus filter and four-color matrix algorithm to improve the color measurement accurary with 380–780 nm wavelength range,compatible with color management softwares such as Lightspace and Calman.

Highlights Product Descriptions Specifications

Highlights

- Wavelength range:380–780 nm

- Brightness range:

0.0002 fL-1500 fL

0.0002 fL @Signal to noise ratio > 10, 20s exposure

0.001 fL @Signal to noise ratio > 10, 0.5s exposure

0.001 fL @Signal to noise ratio > 100, 20s exposure

1500 fL @Signal to noise ratio > 8000, 1s exposure

- Brightness Accuracy:

± 2 % @ 0.1 fL, 0.4s exposure

- Brightness Repeatability:

0.2 % @ 0.1 fL, 0.4s exposure

1.5 % @ 0.01 fL, 0.5s exposure

1.5 % @ 0.001 fL, 20s exposure

- Chroma Accuracy:

± 0.0015 x, y @ 0.1 fL, 0.4s exposure

± 0.0015 x, y @ 0.02 fL, 20s exposure

- Chroma Repeatability:

0.0005 x, y @ 0.1 fL, 0.4s exposure

0.0005 x, y @ 0.02 fL, 20s exposure

- Polarization Error:≤ 0.1 %

- Sync Frequency:10 – 500Hz (Custom sync frequency10Hz-10KHz available)

- Exposure Time Range:1ms - 20s

- Voltage:5V/120 mA (600mW) via USB 2.0

- Interface:USB 2.0

- Weight:12oz. (0.34 Kg.)

Specifications

LCD
INPUT
OUTPUT
COMPANTIBLE SDI FORMATS
Audio In / Out
GENERAL
